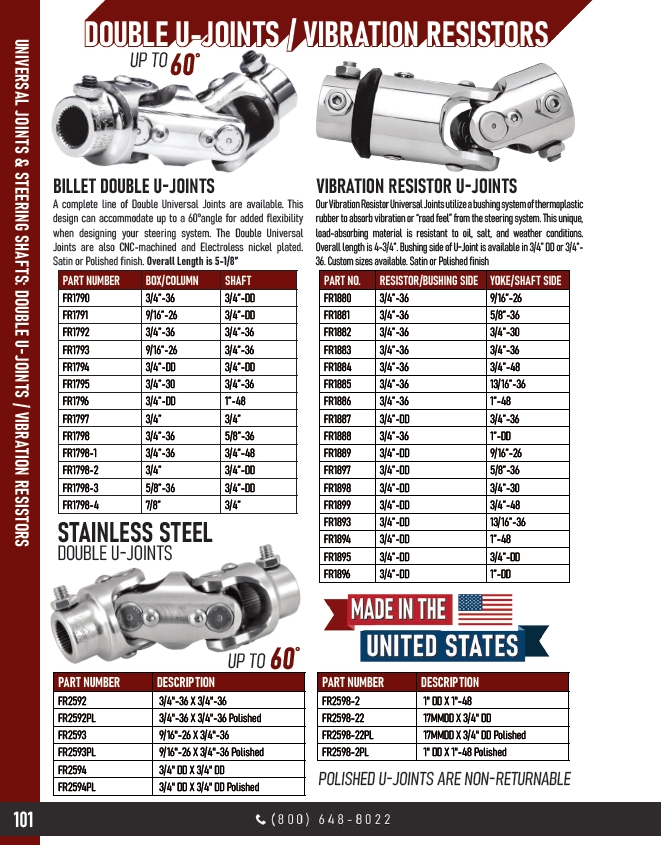

101 UNIVERSAL JOINTS & STEERING SHAFTS: DOUBLE U-JOINTS / VIBRATION RESISTORS
BILLET DOUBLE U-JOINTS
A complete line of Double Universal Joints are available. This
design can accommodate up to a 60°angle for added flexibility
when designing your steering system. The Double Universal
Joints are also CNC-machined and Electroless nickel plated.
Satin or Polished finish. Overall Length is 5-1/8”
DOUBLE U-JOINTS
POLISHED U-JOINTS ARE NON-RETURNABLE
STAINLESS STEEL
VIBRATION RESISTOR U-JOINTS
UP TO
UP TO
60
60
Our Vibration Resistor Universal Joints utilize a bushing system of thermoplastic
rubber to absorb vibration or “road feel” from the steering system. This unique,
load-absorbing material is resistant to oil, salt, and weather conditions.
Overall length is 4-3/4”. Bushing side of U-Joint is available in 3/4” DD or 3/4”-
36. Custom sizes available. Satin or Polished finish
PART NUMBER BOX/COLUMN SHAFT
FR1790 3/4”-36 3/4”-DD
FR1791 9/16”-26 3/4”-DD
FR1792 3/4”-36 3/4”-36
FR1793 9/16”-26 3/4”-36
FR1794 3/4”-DD 3/4”-DD
FR1795 3/4”-30 3/4”-36
FR1796 3/4”-DD 1”-48
FR1797 3/4” 3/4”
FR1798 3/4”-36 5/8”-36
FR1798-1 3/4”-36 3/4”-48
FR1798-2 3/4” 3/4”-DD
FR1798-3 5/8”-36 3/4”-DD
FR1798-4 7/8” 3/4”
PART NO. RESISTOR/BUSHING SIDE YOKE/SHAFT SIDE
FR1880 3/4”-36 9/16”-26
FR1881 3/4”-36 5/8”-36
FR1882 3/4”-36 3/4”-30
FR1883 3/4”-36 3/4”-36
FR1884 3/4”-36 3/4”-48
FR1885 3/4”-36 13/16”-36
FR1886 3/4”-36 1”-48
FR1887 3/4”-DD 3/4”-36
FR1888 3/4”-36 1”-DD
FR1889 3/4”-DD 9/16”-26
FR1897 3/4”-DD 5/8”-36
FR1898 3/4”-DD 3/4”-30
FR1899 3/4”-DD 3/4”-48
FR1893 3/4”-DD 13/16”-36
FR1894 3/4”-DD 1”-48
FR1895 3/4”-DD 3/4”-DD
FR1896 3/4”-DD 1”-DD
PART NUMBER DESCRIPTION
FR2592 3/4"-36 X 3/4"-36
FR2592PL 3/4"-36 X 3/4"-36 Polished
FR2593 9/16"-26 X 3/4"-36
FR2593PL 9/16"-26 X 3/4"-36 Polished
FR2594 3/4" DD X 3/4" DD
FR2594PL 3/4" DD X 3/4" DD Polished
PART NUMBER DESCRIPTION
FR2598-2 1" DD X 1"-48
FR2598-22 17MMDD X 3/4" DD
FR2598-22PL 17MMDD X 3/4" DD Polished
FR2598-2PL 1" DD X 1"-48 Polished
