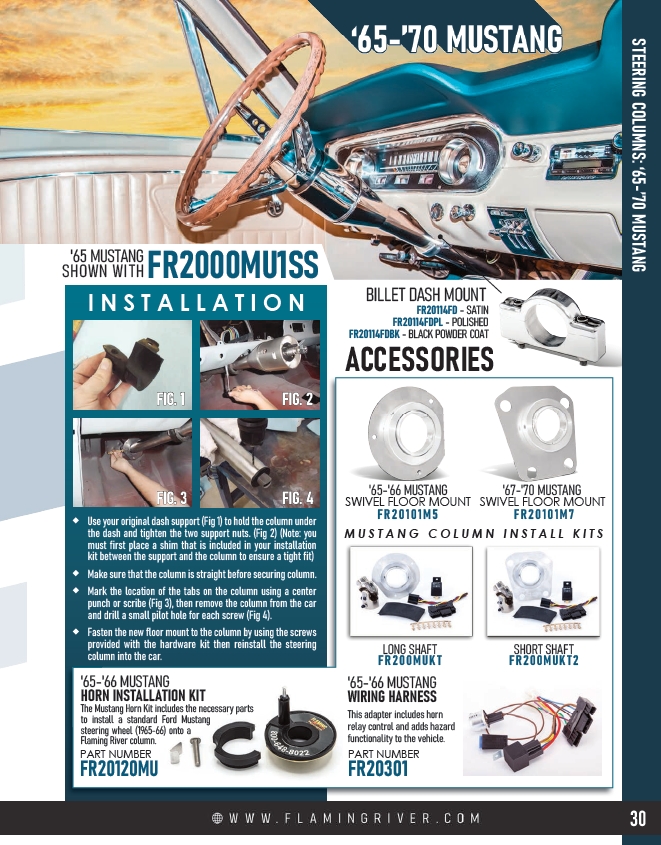

STEERING COLUMNS: ‘65-’70 MUSTANG
'65 MUSTANG
SHOWN WITH FR2000MU1SS
I N S T A L L A T I O N
Use your original dash support (Fig 1) to hold the column under
the dash and tighten the two support nuts. (Fig 2) (Note: you
must first place a shim that is included in your installation
kit between the support and the column to ensure a tight fit)
Make sure that the column is straight before securing column.
Mark the location of the tabs on the column using a center
punch or scribe (Fig 3), then remove the column from the car
and drill a small pilot hole for each screw (Fig 4).
Fasten the new floor mount to the column by using the screws
provided with the hardware kit then reinstall the steering
column into the car.
BILLET DASH MOUNT
'65-'66 MUSTANG
'67-'70 MUSTANG
SWIVEL FLOOR MOUNT
M U S T A N G C O L U M N I N S T A L L K I T S
SWIVEL FLOOR MOUNT
FR20101M5 FR20101M7
'65-'66 MUSTANG
WIRING HARNESS
FR20301 PART NUMBER
FIG. 1
FIG. 3
FIG. 2
FIG. 4
FR20114FD - SATIN
FR20114FDPL - POLISHED
FR20114FDBK - BLACK POWDER COAT
This adapter includes horn
relay control and adds hazard
functionality to the vehicle.
'65-'66 MUSTANG
HORN INSTALLATION KIT
LONG SHAFT
FR200MUK T
SHORT SHAFT
FR200MUKT2
ACCESSORIES
The Mustang Horn Kit includes the necessary parts
to install a standard Ford Mustang
steering wheel (1965-66) onto a
Flaming River column.
FR20120MU PART NUMBER
