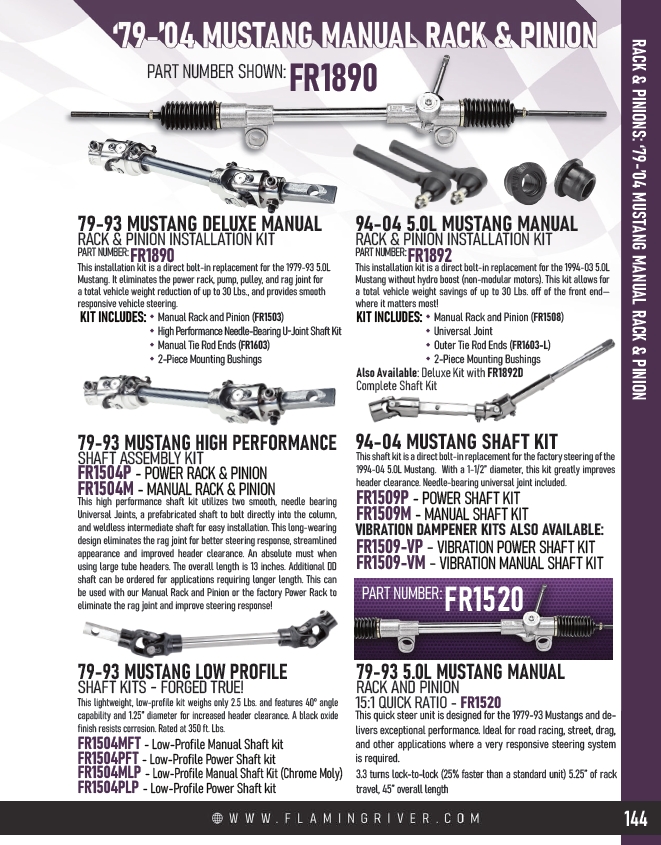

RACK & PINIONS: ‘79-’04 MUSTANG MANUAL RACK & PINION
144
PART NUMBER SHOWN:FR1890
94-04 5.0L MUSTANG MANUAL
RACK & PINION INSTALLATION KIT
FR1890 FR1892
PART NUMBER: PART NUMBER:
This installation kit is a direct bolt-in replacement for the 1994-03 5.0L
Mustang without hydro boost (non-modular motors). This kit allows for
a total vehicle weight savings of up to 30 Lbs. off of the front end—
where it matters most!
Manual Rack and Pinion (FR1508)
Universal Joint
Outer Tie Rod Ends (FR1603-L)
2-Piece Mounting Bushings
KIT INCLUDES: KIT INCLUDES:
Also Available: Deluxe Kit with FR1892D
Complete Shaft Kit
94-04 MUSTANG SHAFT KIT
79-93 MUSTANG DELUXE MANUAL
RACK & PINION INSTALLATION KIT
79-93 MUSTANG HIGH PERFORMANCE
SHAFT ASSEMBLY KIT
79-93 MUSTANG LOW PROFILE
SHAFT KITS - FORGED TRUE!
VIBRATION DAMPENER KITS ALSO AVAILABLE:
79-93 5.0L MUSTANG MANUAL
RACK AND PINION
15:1 QUICK RATIO - FR1520
This lightweight, low-profile kit weighs only 2.5 Lbs. and features 40° angle
capability and 1.25” diameter for increased header clearance. A black oxide
finish resists corrosion. Rated at 350 ft. Lbs.
This quick steer unit is designed for the 1979-93 Mustangs and delivers
exceptional performance. Ideal for road racing, street, drag,
and other applications where a very responsive steering system
is required.
3.3 turns lock-to-lock (25% faster than a standard unit) 5.25” of rack
travel, 45” overall length
This installation kit is a direct bolt-in replacement for the 1979-93 5.0L
Mustang. It eliminates the power rack, pump, pulley, and rag joint for
a total vehicle weight reduction of up to 30 Lbs., and provides smooth
responsive vehicle steering.
This high performance shaft kit utilizes two smooth, needle bearing
Universal Joints, a prefabricated shaft to bolt directly into the column,
and weldless intermediate shaft for easy installation. This long-wearing
design eliminates the rag joint for better steering response, streamlined
appearance and improved header clearance. An absolute must when
using large tube headers. The overall length is 13 inches. Additional DD
shaft can be ordered for applications requiring longer length. This can
be used with our Manual Rack and Pinion or the factory Power Rack to
eliminate the rag joint and improve steering response!
This shaft kit is a direct bolt-in replacement for the factory steering of the
1994-04 5.0L Mustang. With a 1-1/2” diameter, this kit greatly improves
header clearance. Needle-bearing universal joint included.
Manual Rack and Pinion (FR1503)
High Performance Needle-Bearing U-Joint Shaft Kit
Manual Tie Rod Ends (FR1603)
2-Piece Mounting Bushings
FR1504P - POWER RACK & PINION
FR1504MFT - Low-Profile Manual Shaft kit
FR1504PFT - Low-Profile Power Shaft kit
FR1504PLP - Low-Profile Power Shaft kit
FR1504MLP - Low-Profile Manual Shaft Kit (Chrome Moly)
FR1509P - POWER SHAFT KIT
FR1509-VP - VIBRATION POWER SHAFT KIT
FR1504M - MANUAL RACK & PINION
FR1509M - MANUAL SHAFT KIT
FR1509-VM - VIBRATION MANUAL SHAFT KIT
PART NUMBER:FR1520
