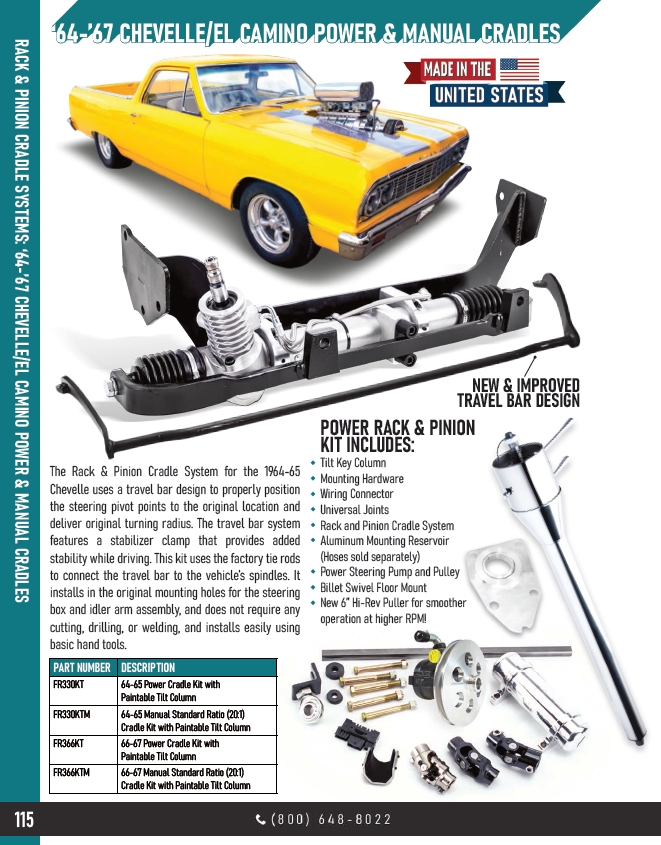

115 RACK & PINION CRADLE SYSTEMS: ‘64-’67 CHEVELLE/EL CAMINO POWER & MANUAL CRADLES
The Rack & Pinion Cradle System for the 1964-65
Chevelle uses a travel bar design to properly position
the steering pivot points to the original location and
deliver original turning radius. The travel bar system
features a stabilizer clamp that provides added
stability while driving. This kit uses the factory tie rods
to connect the travel bar to the vehicle’s spindles. It
installs in the original mounting holes for the steering
box and idler arm assembly, and does not require any
cutting, drilling, or welding, and installs easily using
basic hand tools.
PART NUMBER DESCRIPTION
FR330KT 64-65 Power Cradle Kit with
Paintable Tilt Column
FR330KTM 64-65 Manual Standard Ratio (20:1)
Cradle Kit with Paintable Tilt Column
FR366KT 66-67 Power Cradle Kit with
Paintable Tilt Column
FR366KTM 66-67 Manual Standard Ratio (20:1)
Cradle Kit with Paintable Tilt Column
NEW & IMPROVED
TRAVEL BAR DESIGN
POWER RACK & PINION
KIT INCLUDES:
Tilt Key Column
Mounting Hardware
Wiring Connector
Universal Joints
Rack and Pinion Cradle System
Aluminum Mounting Reservoir
(Hoses sold separately)
Power Steering Pump and Pulley
Billet Swivel Floor Mount
New 6” Hi-Rev Puller for smoother
operation at higher RPM!
