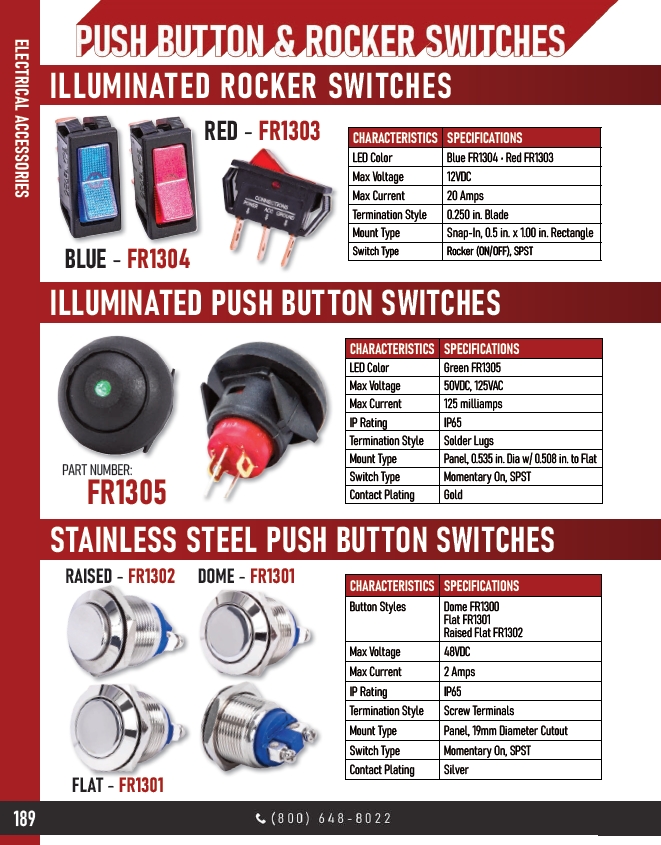

189 ELECTRICAL ACCESSORIES
ILLUMINATED ROCKER SWITCHES
CHARACTERISTICS SPECIFICATIONS
LED Color Blue FR1304 • Red FR1303
Max Voltage 12VDC
Max Current 20 Amps
Termination Style 0.250 in. Blade
Mount Type Snap-In, 0.5 in. x 1.00 in. Rectangle
Switch Type Rocker (ON/OFF), SPST
BLUE - FR1304
RED - FR1303
ILLUMINATED PUSH BUTTON SWITCHES
CHARACTERISTICS SPECIFICATIONS
LED Color Green FR1305
Max Voltage 50VDC, 125VAC
Max Current 125 milliamps
IP Rating IP65
Termination Style Solder Lugs
Mount Type Panel, 0.535 in. Dia w/ 0.508 in. to Flat
Switch Type Momentary On, SPST
Contact Plating Gold
FR1305 PART NUMBER:
STAINLESS STEEL PUSH BUTTON SWITCHES
CHARACTERISTICS SPECIFICATIONS
Button Styles Dome FR1300
Flat FR1301
Raised Flat FR1302
Max Voltage 48VDC
Max Current 2 Amps
IP Rating IP65
Termination Style Screw Terminals
Mount Type Panel, 19mm Diameter Cutout
Switch Type Momentary On, SPST
Contact Plating Silver
RAISED - FR1302
FLAT - FR1301
DOME - FR1301
