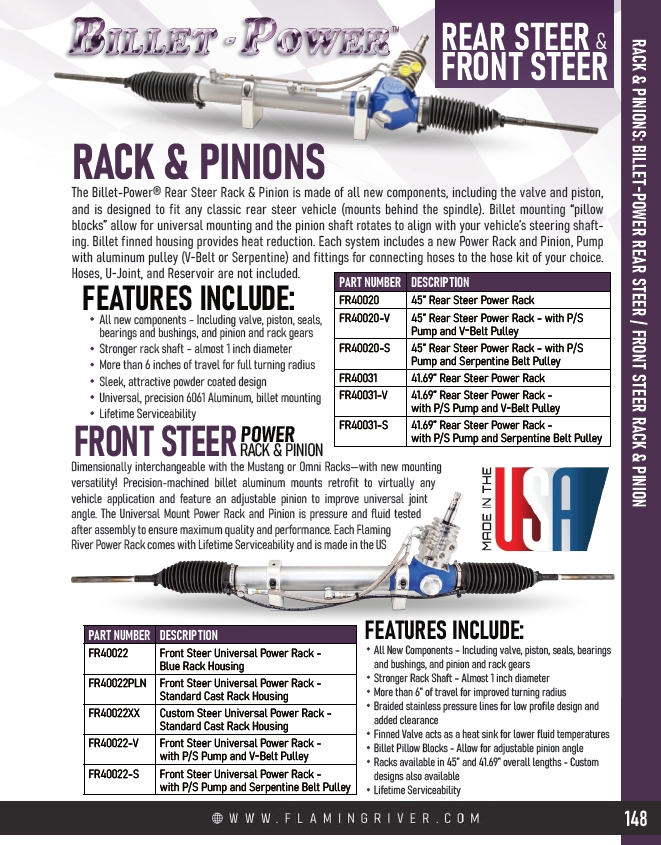

RACK & PINIONS: BILLET-POWER REAR STEER / FRONT STEER RACK & PINION
148
RACK & PINIONS
FEATURES INCLUDE:
Dimensionally interchangeable with the Mustang or Omni Racks—with new mounting
versatility! Precision-machined billet aluminum mounts retrofit to virtually any
vehicle application and feature an adjustable pinion to improve universal joint
angle. The Universal Mount Power Rack and Pinion is pressure and fluid tested
after assembly to ensure maximum quality and performance. Each Flaming
River Power Rack comes with Lifetime Serviceability and is made in the US
FEATURES INCLUDE:
FRONT STEERPOWER
RACK & PINION
REAR STEER
FRONT STEER&
The Billet-Power® Rear Steer Rack & Pinion is made of all new components, including the valve and piston,
and is designed to fit any classic rear steer vehicle (mounts behind the spindle). Billet mounting “pillow
blocks” allow for universal mounting and the pinion shaft rotates to align with your vehicle’s steering shafting.
Billet finned housing provides heat reduction. Each system includes a new Power Rack and Pinion, Pump
with aluminum pulley (V-Belt or Serpentine) and fittings for connecting hoses to the hose kit of your choice.
Hoses, U-Joint, and Reservoir are not included. PART NUMBER DESCRIPTION
FR40020 45” Rear Steer Power Rack
FR40020-V 45” Rear Steer Power Rack - with P/S
Pump and V-Belt Pulley
FR40020-S 45” Rear Steer Power Rack - with P/S
Pump and Serpentine Belt Pulley
FR40031 41.69” Rear Steer Power Rack
FR40031-V 41.69” Rear Steer Power Rack -
with P/S Pump and V-Belt Pulley
FR40031-S 41.69” Rear Steer Power Rack -
with P/S Pump and Serpentine Belt Pulley
All new components – Including valve, piston, seals,
bearings and bushings, and pinion and rack gears
Stronger rack shaft – almost 1 inch diameter
More than 6 inches of travel for full turning radius
Sleek, attractive powder coated design
Universal, precision 6061 Aluminum, billet mounting
Lifetime Serviceability
PART NUMBER DESCRIPTION
FR40022 Front Steer Universal Power Rack -
Blue Rack Housing
FR40022PLN Front Steer Universal Power Rack -
Standard Cast Rack Housing
FR40022XX Custom Steer Universal Power Rack -
Standard Cast Rack Housing
FR40022-V Front Steer Universal Power Rack -
with P/S Pump and V-Belt Pulley
FR40022-S Front Steer Universal Power Rack -
with P/S Pump and Serpentine Belt Pulley
All New Components – Including valve, piston, seals, bearings
and bushings, and pinion and rack gears
Stronger Rack Shaft – Almost 1 inch diameter
More than 6” of travel for improved turning radius
Braided stainless pressure lines for low profile design and
added clearance
Finned Valve acts as a heat sink for lower fluid temperatures
Billet Pillow Blocks - Allow for adjustable pinion angle
Racks available in 45” and 41.69” overall lengths - Custom
designs also available
Lifetime Serviceability
