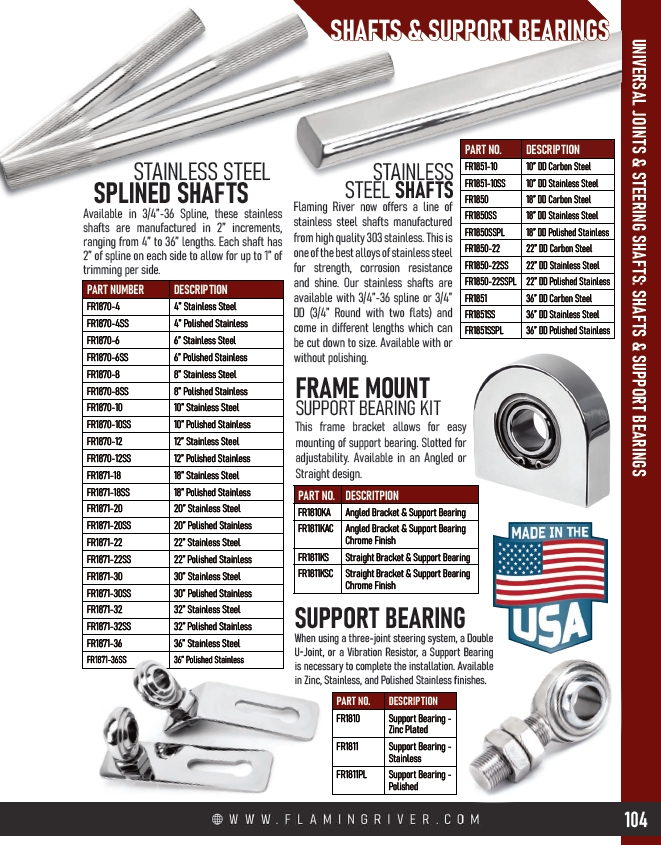

UNIVERSAL JOINTS & STEERING SHAFTS: SHAFTS & SUPPORT BEARINGS
104
STAINLESS STEEL
SPLINED SHAFTS
STAINLESS
STEEL SHAFTS
FRAME MOUNT
SUPPORT BEARING KIT
This frame bracket allows for easy
mounting of support bearing. Slotted for
adjustability. Available in an Angled or
Straight design.
SUPPORT BEARING
Available in 3/4”-36 Spline, these stainless
shafts are manufactured in 2” increments,
ranging from 4” to 36” lengths. Each shaft has
2” of spline on each side to allow for up to 1” of
trimming per side.
Flaming River now offers a line of
stainless steel shafts manufactured
from high quality 303 stainless. This is
one of the best alloys of stainless steel
for strength, corrosion resistance
and shine. Our stainless shafts are
available with 3/4”-36 spline or 3/4”
DD (3/4” Round with two flats) and
come in different lengths which can
be cut down to size. Available with or
without polishing.
PART NUMBER DESCRIPTION
FR1870-4 4” Stainless Steel
FR1870-4SS 4” Polished Stainless
FR1870-6 6” Stainless Steel
FR1870-6SS 6” Polished Stainless
FR1870-8 8” Stainless Steel
FR1870-8SS 8” Polished Stainless
FR1870-10 10” Stainless Steel
FR1870-10SS 10” Polished Stainless
FR1870-12 12” Stainless Steel
FR1870-12SS 12” Polished Stainless
FR1871-18 18” Stainless Steel
FR1871-18SS 18” Polished Stainless
FR1871-20 20” Stainless Steel
FR1871-20SS 20” Polished Stainless
FR1871-22 22” Stainless Steel
FR1871-22SS 22” Polished Stainless
FR1871-30 30” Stainless Steel
FR1871-30SS 30” Polished Stainless
FR1871-32 32” Stainless Steel
FR1871-32SS 32” Polished Stainless
FR1871-36 36” Stainless Steel
FR1871-36SS 36” Polished Stainless
PART NO. DESCRIPTION
FR1851-10 10” DD Carbon Steel
FR1851-10SS 10” DD Stainless Steel
FR1850 18” DD Carbon Steel
FR1850SS 18” DD Stainless Steel
FR1850SSPL 18” DD Polished Stainless
FR1850-22 22” DD Carbon Steel
FR1850-22SS 22” DD Stainless Steel
FR1850-22SSPL 22” DD Polished Stainless
FR1851 36” DD Carbon Steel
FR1851SS 36” DD Stainless Steel
FR1851SSPL 36” DD Polished Stainless
PART NO. DESCRITPION
FR1810KA Angled Bracket & Support Bearing
FR1811KAC Angled Bracket & Support Bearing
Chrome Finish
FR1811KS Straight Bracket & Support Bearing
FR1811KSC Straight Bracket & Support Bearing
Chrome Finish
When using a three-joint steering system, a Double
U-Joint, or a Vibration Resistor, a Support Bearing
is necessary to complete the installation. Available
in Zinc, Stainless, and Polished Stainless finishes.
PART NO. DESCRIPTION
FR1810 Support Bearing -
Zinc Plated
FR1811 Support Bearing -
Stainless
FR1811PL Support Bearing -
Polished
