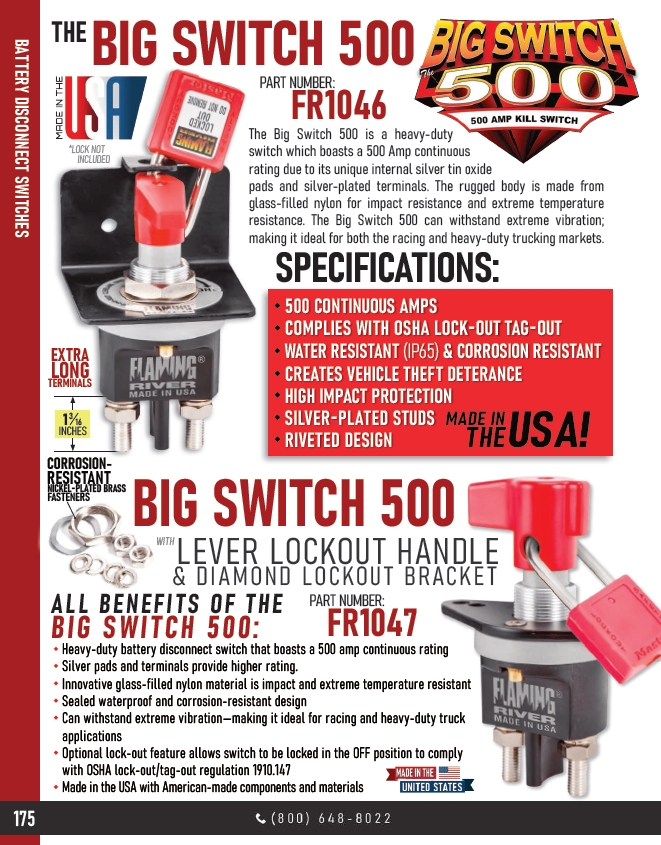

175 BATTERY DISCONNECT SWITCHES
THE
BIG SWITCH 500
EXTRA
TERMINALS LONG
FR1046
500 CONTINUOUS AMPS
COMPLIES WITH OSHA LOCK-OUT TAG-OUT
WATER RESISTANT (IP65) & CORROSION RESISTANT
CREATES VEHICLE THEFT DETERANCE
HIGH IMPACT PROTECTION
RIVETED DESIGN
SILVER-PLATED STUDS
MADE IN THEUSA!
BIG SWITCH 500
LEVER LOCKOUT HANDLE
& DIAMOND LOCKOUT B RACKE T
WITH
PART NUMBER:
PART NUMBER:
FR1047
*LOCK NOT
INCLUDED
The Big Switch 500 is a heavy-duty
switch which boasts a 500 Amp continuous
rating due to its unique internal silver tin oxide
pads and silver-plated terminals. The rugged body is made from
glass-filled nylon for impact resistance and extreme temperature
resistance. The Big Switch 500 can withstand extreme vibration;
making it ideal for both the racing and heavy-duty trucking markets. SPECIFICATIONS:
13 16
INCHES
CORROSIONRESISTANT
NICKEL-PLATED BRASS
FASTENERS
ALL BENEFI TS OF THE
BIG SWI TCH 500:
Heavy-duty battery disconnect switch that boasts a 500 amp continuous rating
Silver pads and terminals provide higher rating.
Innovative glass-filled nylon material is impact and extreme temperature resistant
Sealed waterproof and corrosion-resistant design
Can withstand extreme vibration—making it ideal for racing and heavy-duty truck
applications
Optional lock-out feature allows switch to be locked in the OFF position to comply
with OSHA lock-out/tag-out regulation 1910.147
Made in the USA with American-made components and materials
