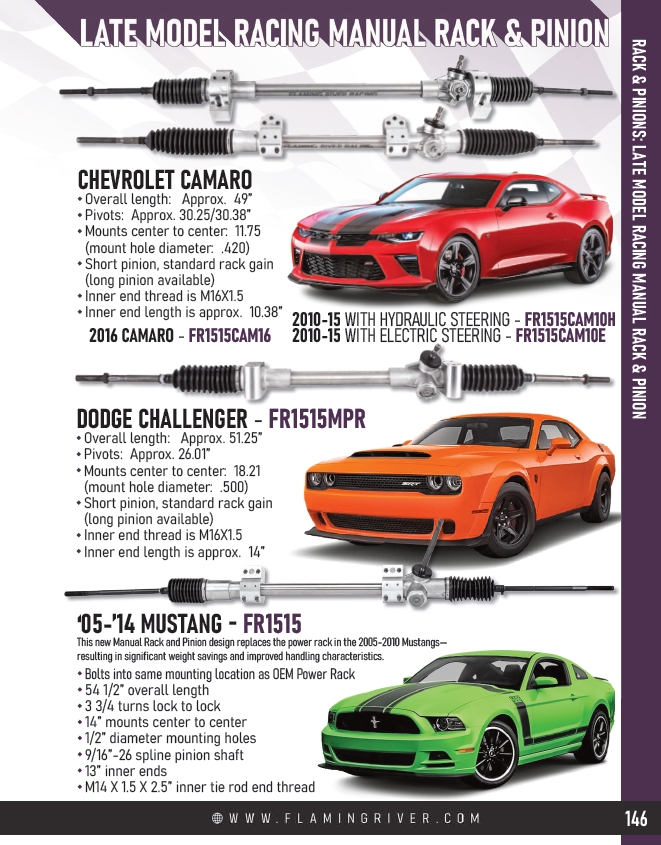

RACK & PINIONS: LATE MODEL RACING MANUAL RACK & PINION
146
CHEVROLET CAMARO
Overall length: Approx. 49”
Pivots: Approx. 30.25/30.38”
Mounts center to center: 11.75
(mount hole diameter: .420)
Short pinion, standard rack gain
(long pinion available)
Inner end thread is M16X1.5
Inner end length is approx. 10.38”
2016 CAMARO - FR1515CAM16
2010-15 WITH HYDRAULIC STEERING - FR1515CAM10H
2010-15 WITH ELECTRIC STEERING - FR1515CAM10E
DODGE CHALLENGER - FR1515MPR
Overall length: Approx. 51.25”
Pivots: Approx. 26.01”
Mounts center to center: 18.21
(mount hole diameter: .500)
Short pinion, standard rack gain
(long pinion available)
Inner end thread is M16X1.5
Inner end length is approx. 14”
‘05-’14 MUSTANG - FR1515
This new Manual Rack and Pinion design replaces the power rack in the 2005-2010 Mustangs—
resulting in significant weight savings and improved handling characteristics.
Bolts into same mounting location as OEM Power Rack
54 1/2” overall length
3 3/4 turns lock to lock
14” mounts center to center
1/2” diameter mounting holes
9/16”-26 spline pinion shaft
13” inner ends
M14 X 1.5 X 2.5” inner tie rod end thread
/www.flamingriver.com
