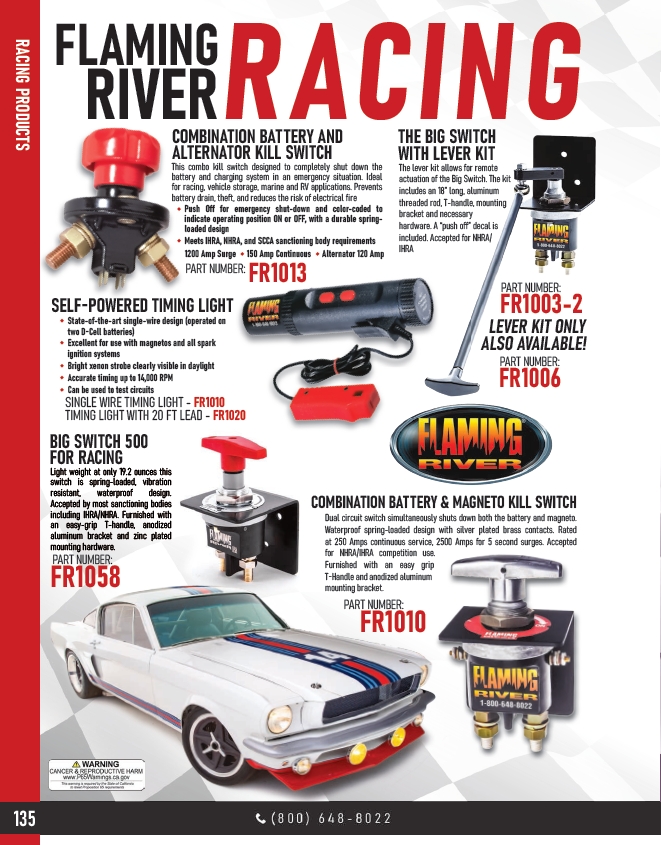

135 RACING PRODUCTS
FLAMING RIVERRACING
COMBINATION BATTERY AND
ALTERNATOR KILL SWITCH
This combo kill switch designed to completely shut down the
battery and charging system in an emergency situation. Ideal
for racing, vehicle storage, marine and RV applications. Prevents
battery drain, theft, and reduces the risk of electrical fire
Push Off for emergency shut-down and color-coded to
indicate operating position ON or OFF, with a durable springloaded
Meets IHRA, NHRA, and SCCA sanctioning body requirements
1200 Amp Surge 150 Amp Continuous Alternator 120 Amp
COMBINATION BATTERY & MAGNETO KILL SWITCH
SELF-POWERED TIMING LIGHT
SINGLE WIRE TIMING LIGHT - FR1010
TIMING LIGHT WITH 20 FT LEAD - FR1020
BIG SWITCH 500
FOR RACING
THE BIG SWITCH
WITH LEVER KIT
LEVER KIT ONLY
ALSO AVAILABLE!
PART NUMBER:
PART NUMBER:
PART NUMBER:
PART NUMBER:
PART NUMBER:
FR1010
FR1058
FR1013
FR1003-2
FR1006
Dual circuit switch simultaneously shuts down both the battery and magneto.
Waterproof spring-loaded design with silver plated brass contacts. Rated
at 250 Amps continuous service, 2500 Amps for 5 second surges. Accepted
for NHRA/IHRA competition use.
Furnished with an easy grip
T-Handle and anodized aluminum
mounting bracket.
design
State-of-the-art single-wire design (operated on
two D-Cell batteries)
Excellent for use with magnetos and all spark
ignition systems
Bright xenon strobe clearly visible in daylight
Accurate timing up to 14,000 RPM
Can be used to test circuits
Light weight at only 19.2 ounces this
switch is spring-loaded, vibration
resistant, waterproof design.
Accepted by most sanctioning bodies
including IHRA/NHRA. Furnished with
an easy-grip T-handle, anodized
aluminum bracket and zinc plated
mounting hardware.
The lever kit allows for remote
actuation of the Big Switch. The kit
includes an 18” long, aluminum
threaded rod, T-handle, mounting
bracket and necessary
hardware. A “push off” decal is
included. Accepted for NHRA/
IHRA
