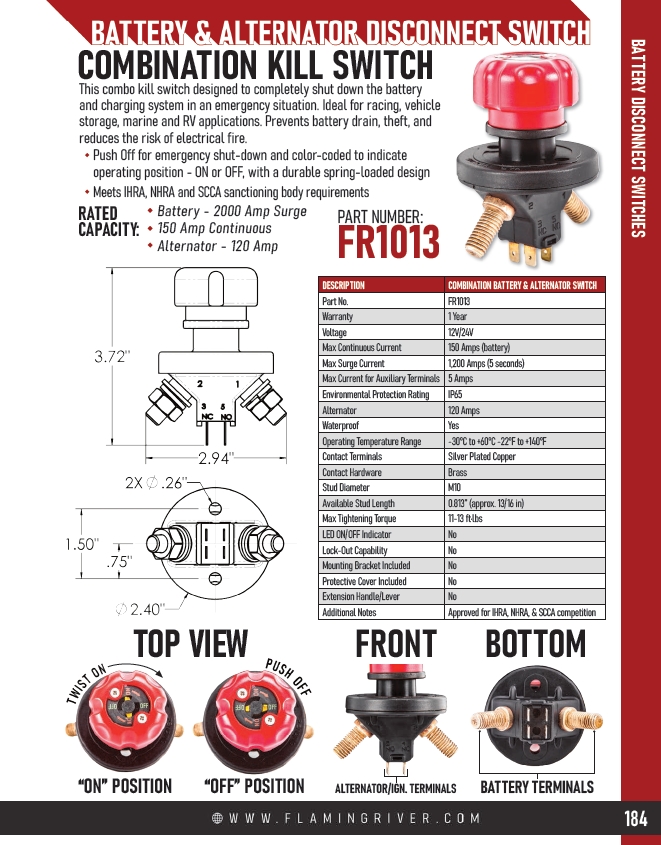

BATTERY DISCONNECT SWITCHES
184
COMBINATION KILL SWITCH
This combo kill switch designed to completely shut down the battery
and charging system in an emergency situation. Ideal for racing, vehicle
storage, marine and RV applications. Prevents battery drain, theft, and
reduces the risk of electrical fire.
Push Off for emergency shut-down and color-coded to indicate
operating position - ON or OFF, with a durable spring-loaded design
Meets IHRA, NHRA and SCCA sanctioning body requirements
RATED
CAPACITY: PART NUMBER:
FR1013 DESCRIPTION COMBINATION BATTERY & ALTERNATOR SWITCH
Part No. FR1013
Warranty 1 Year
Voltage 12V/24V
Max Continuous Current 150 Amps (battery)
Max Surge Current 1,200 Amps (5 seconds)
Max Current for Auxiliary Terminals 5 Amps
Environmental Protection Rating IP65
Alternator 120 Amps
Waterproof Yes
Operating Temperature Range -30°C to +60°C -22°F to +140°F
Contact Terminals Silver Plated Copper
Contact Hardware Brass
Stud Diameter M10
Available Stud Length 0.813” (approx. 13/16 in)
Max Tightening Torque 11-13 ft·lbs
LED ON/OFF Indicator No
Lock-Out Capability No
Mounting Bracket Included No
Protective Cover Included No
Extension Handle/Lever No
Additional Notes Approved for IHRA, NHRA, & SCCA competition
Battery - 2000 Amp Surge
150 Amp Continuous
Alternator - 120 Amp
TOP VIEW FRONT BOTTOM
“ON” POSITION “OFF” POSITION ALTERNATOR/IGN. TERMINALS BATTERY TERMINALS
