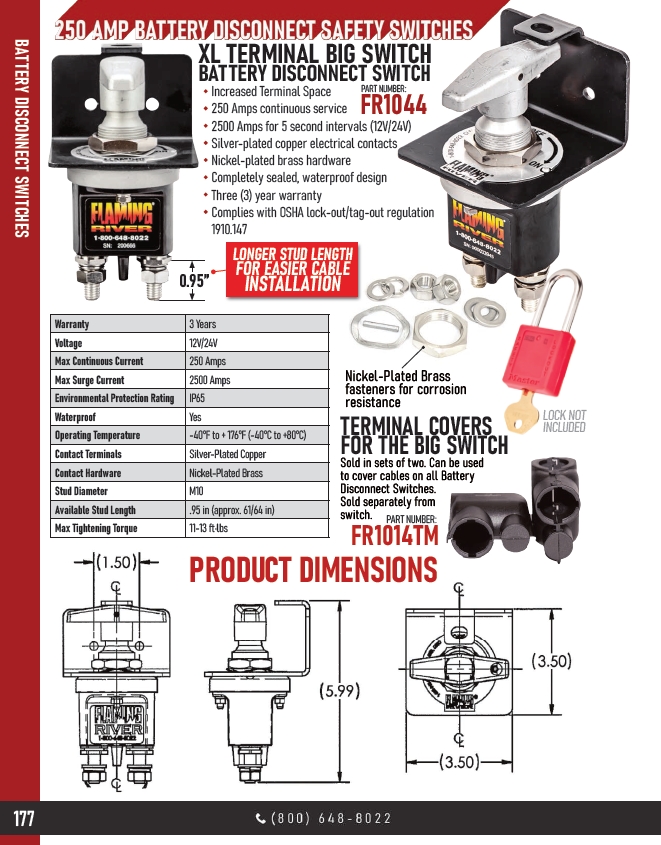

177 BATTERY DISCONNECT SWITCHES
XL TERMINAL BIG SWITCH
BATTERY DISCONNECT SWITCH
Increased Terminal Space
250 Amps continuous service
FR1044
PART NUMBER: 2500 Amps for 5 second intervals (12V/24V)
Silver-plated copper electrical contacts
Nickel-plated brass hardware
Completely sealed, waterproof design
Three (3) year warranty
Complies with OSHA lock-out/tag-out regulation
1910.147
0.95”
LONGER STUD LENGTH
FOR EASIER CABLE
INSTALLATION
Warranty 3 Years
Voltage 12V/24V
Max Continuous Current 250 Amps
Max Surge Current 2500 Amps
Environmental Protection Rating IP65
Waterproof Yes
Operating Temperature -40°F to + 176°F (-40°C to +80°C)
Contact Terminals Silver-Plated Copper
Contact Hardware Nickel-Plated Brass
Stud Diameter M10
Available Stud Length .95 in (approx. 61/64 in)
Max Tightening Torque 11-13 ft·lbs
Nickel-Plated Brass
fasteners for corrosion
resistance
LOCK NOT
INCLUDED
TERMINAL COVERS
FOR THE BIG SWITCH
Sold in sets of two. Can be used
to cover cables on all Battery
Disconnect Switches.
Sold separately from
switch. PART NUMBER: FR1014TM
PRODUCT DIMENSIONS
