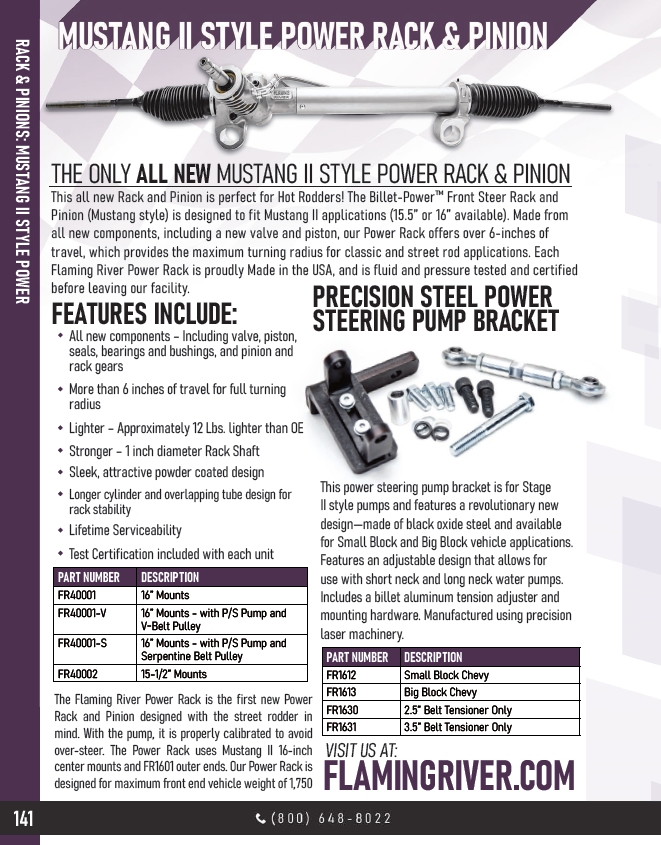

141 RACK & PINIONS: MUSTANG II STYLE POWER
THE ONLY ALL NEW MUSTANG II STYLE POWER RACK & PINION
This all new Rack and Pinion is perfect for Hot Rodders! The Billet-Power™ Front Steer Rack and
Pinion (Mustang style) is designed to fit Mustang II applications (15.5” or 16” available). Made from
all new components, including a new valve and piston, our Power Rack offers over 6-inches of
travel, which provides the maximum turning radius for classic and street rod applications. Each
Flaming River Power Rack is proudly Made in the USA, and is fluid and pressure tested and certified
before leaving our facility.
FEATURES INCLUDE: PRECISION STEEL POWER
STEERING PUMP BRACKET
All new components – Including valve, piston,
seals, bearings and bushings, and pinion and
rack gears
More than 6 inches of travel for full turning
radius
Lighter – Approximately 12 Lbs. lighter than OE
Stronger – 1 inch diameter Rack Shaft
Sleek, attractive powder coated design
Lifetime Serviceability
Test Certification included with each unit
VISIT US AT:
Longer cylinder and overlapping tube design for
rack stability
PART NUMBER DESCRIPTION
FR40001 16” Mounts
FR40001-V 16” Mounts - with P/S Pump and
V-Belt Pulley
FR40001-S 16” Mounts - with P/S Pump and
Serpentine Belt Pulley
FR40002 15-1/2” Mounts
This power steering pump bracket is for Stage
II style pumps and features a revolutionary new
design—made of black oxide steel and available
for Small Block and Big Block vehicle applications.
Features an adjustable design that allows for
use with short neck and long neck water pumps.
Includes a billet aluminum tension adjuster and
mounting hardware. Manufactured using precision
laser machinery.
PART NUMBER DESCRIPTION
FR1612 Small Block Chevy
FR1613 Big Block Chevy
FR1630 2.5” Belt Tensioner Only
FR1631 3.5” Belt Tensioner Only
The Flaming River Power Rack is the first new Power
Rack and Pinion designed with the street rodder in
mind. With the pump, it is properly calibrated to avoid
over-steer. The Power Rack uses Mustang II 16-inch
center mounts and FR1601 outer ends. Our Power Rack is
designed for maximum front end vehicle weight of 1,750 FLAMINGRIVER.COM
/FLAMINGRIVER.COM
