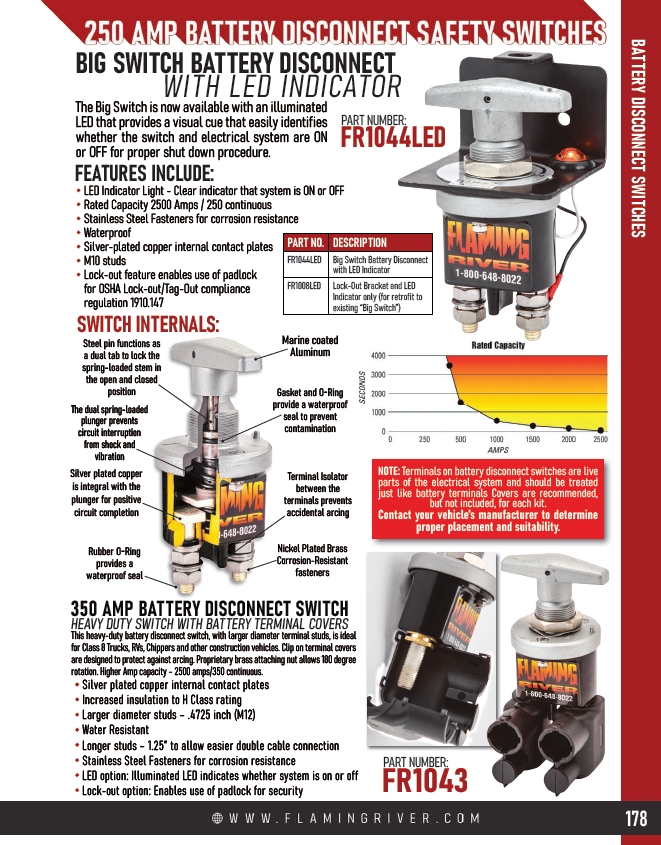

BATTERY DISCONNECT SWITCHES
178
BIG SWITCH BATTERY DISCONNECT
WITH LED INDICATOR
The Big Switch is now available with an illuminated
LED that provides a visual cue that easily identifies
PART NUMBER:
whether the switch and electrical system are ON
FR1044LED
or OFF for proper shut down procedure. FEATURES INCLUDE:
LED Indicator Light - Clear indicator that system is ON or OFF
Rated Capacity 2500 Amps / 250 continuous
Stainless Steel Fasteners for corrosion resistance
Waterproof
Silver-plated copper internal contact plates
M10 studs
Lock-out feature enables use of padlock
for OSHA Lock-out/Tag-Out compliance
regulation 1910.147
PART NO. DESCRIPTION
FR1044LED Big Switch Battery Disconnect
with LED Indicator
FR1008LED Lock-Out Bracket and LED
Indicator only (for retrofit to
existing “Big Switch”)
SWITCH INTERNALS:
Steel pin functions as
a dual tab to lock the
spring-loaded stem in
the open and closed
position
The dual spring-loaded
plunger prevents
circuit interruption
from shock and
vibration
Silver plated copper
is integral with the
plunger for positive
circuit completion
Rubber O-Ring
provides a
waterproof seal
Marine coated
Aluminum
Gasket and O-Ring
provide a waterproof
seal to prevent
contamination
Terminal Isolator
between the
terminals prevents
accidental arcing
Nickel Plated Brass
Corrosion-Resistant
fasteners
NOTE: Terminals on battery disconnect switches are live
parts of the electrical system and should be treated
just like battery terminals Covers are recommended,
but not included, for each kit.
Contact your vehicle’s manufacturer to determine
proper placement and suitability.
FR1043
350 AMP BATTERY DISCONNECT SWITCH
HEAVY DUTY SWITCH WITH BATTERY TERMINAL COVERS
PART NUMBER:
This heavy-duty battery disconnect switch, with larger diameter terminal studs, is ideal
for Class 8 Trucks, RVs, Chippers and other construction vehicles. Clip on terminal covers
are designed to protect against arcing. Proprietary brass attaching nut allows 180 degree
rotation. Higher Amp capacity – 2500 amps/350 continuous.
Silver plated copper internal contact plates
Increased insulation to H Class rating
Larger diameter studs – .4725 inch (M12)
Water Resistant
Longer studs – 1.25” to allow easier double cable connection
Stainless Steel Fasteners for corrosion resistance
LED option: Illuminated LED indicates whether system is on or off
Lock-out option: Enables use of padlock for security
