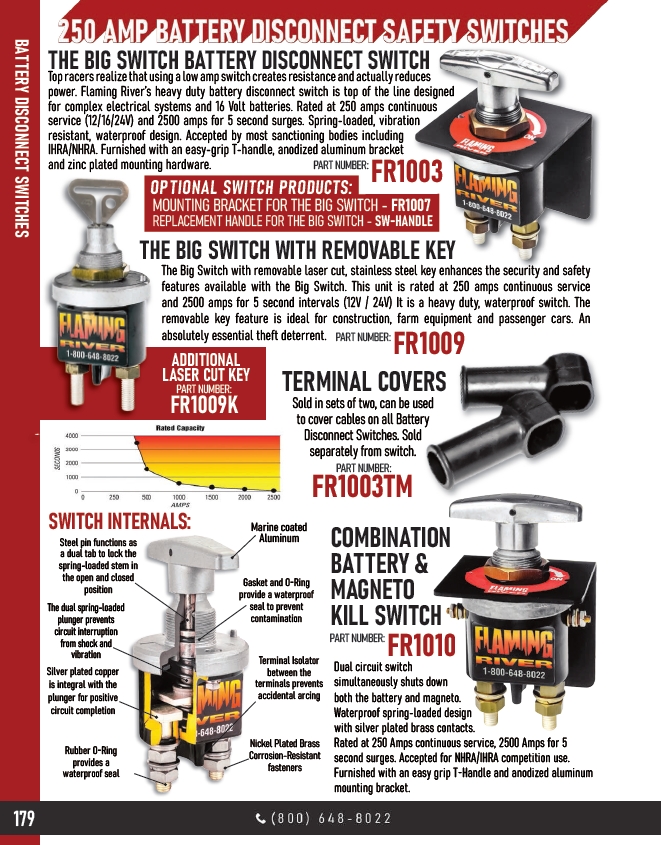

179 BATTERY DISCONNECT SWITCHES
THE BIG SWITCH BATTERY DISCONNECT SWITCH
Top racers realize that using a low amp switch creates resistance and actually reduces
power. Flaming River’s heavy duty battery disconnect switch is top of the line designed
for complex electrical systems and 16 Volt batteries. Rated at 250 amps continuous
service (12/16/24V) and 2500 amps for 5 second surges. Spring-loaded, vibration
resistant, waterproof design. Accepted by most sanctioning bodies including
IHRA/NHRA. Furnished with an easy-grip T-handle, anodized aluminum bracket
and zinc plated mounting hardware. PART NUMBER:
OPTIONAL SWITCH PRODUCTS:
MOUNTING BRACKET FOR THE BIG SWITCH - FR1007
REPLACEMENT HANDLE FOR THE BIG SWITCH - SW-HANDLE
THE BIG SWITCH WITH REMOVABLE KEY
The Big Switch with removable laser cut, stainless steel key enhances the security and safety
features available with the Big Switch. This unit is rated at 250 amps continuous service
and 2500 amps for 5 second intervals (12V / 24V) It is a heavy duty, waterproof switch. The
removable key feature is ideal for construction, farm equipment and passenger cars. An
absolutely essential theft deterrent.
PART NUMBER:
FR1009
TERMINAL COVERS
PART NUMBER:
COMBINATION
BATTERY &
MAGNETO
KILL SWITCH
PART NUMBER:
ADDITIONAL
LASER CUT KEY
PART NUMBER:
FR1003
FR1003TM
FR1010
FR1009K
Sold in sets of two, can be used
to cover cables on all Battery
Disconnect Switches. Sold
separately from switch.
SWITCH INTERNALS:
Steel pin functions as
a dual tab to lock the
spring-loaded stem in
the open and closed
position
The dual spring-loaded
plunger prevents
circuit interruption
from shock and
vibration
Silver plated copper
is integral with the
plunger for positive
circuit completion
Rubber O-Ring
provides a
waterproof seal
Marine coated
Aluminum
Gasket and O-Ring
provide a waterproof
seal to prevent
contamination
Terminal Isolator
between the
terminals prevents
accidental arcing
Nickel Plated Brass
Corrosion-Resistant
fasteners
Dual circuit switch
simultaneously shuts down
both the battery and magneto.
Waterproof spring-loaded design
with silver plated brass contacts.
Rated at 250 Amps continuous service, 2500 Amps for 5
second surges. Accepted for NHRA/IHRA competition use.
Furnished with an easy grip T-Handle and anodized aluminum
mounting bracket.
