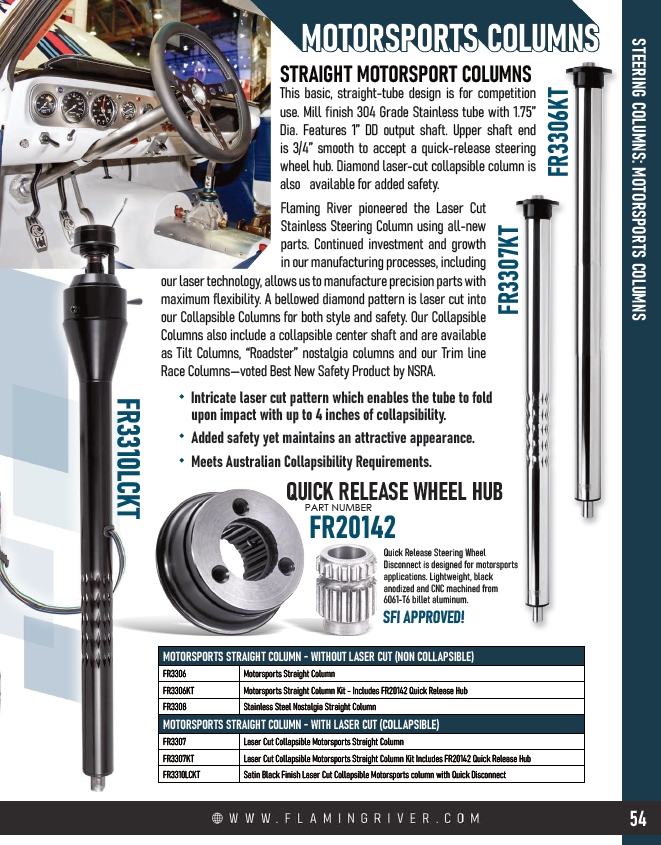

STEERING COLUMNS: MOTORSPORTS COLUMNS
STRAIGHT MOTORSPORT COLUMNS
This basic, straight-tube design is for competition
use. Mill finish 304 Grade Stainless tube with 1.75”
Dia. Features 1” DD output shaft. Upper shaft end
is 3/4” smooth to accept a quick-release steering
wheel hub. Diamond laser-cut collapsible column is
also available for added safety.
Flaming River pioneered the Laser Cut
Stainless Steering Column using all-new
parts. Continued investment and growth
in our manufacturing processes, including
QUICK RELEASE WHEEL HUB
FR3310LCKT
FR3307KT
FR3306KT
our laser technology, allows us to manufacture precision parts with
maximum flexibility. A bellowed diamond pattern is laser cut into
our Collapsible Columns for both style and safety. Our Collapsible
Columns also include a collapsible center shaft and are available
as Tilt Columns, “Roadster” nostalgia columns and our Trim line
Race Columns—voted Best New Safety Product by NSRA.
Intricate laser cut pattern which enables the tube to fold
upon impact with up to 4 inches of collapsibility.
Added safety yet maintains an attractive appearance.
Meets Australian Collapsibility Requirements.
FR20142 PART NUMBER
Quick Release Steering Wheel
Disconnect is designed for motorsports
applications. Lightweight, black
anodized and CNC machined from
6061-T6 billet aluminum.
SFI APPROVED!
MOTORSPORTS STRAIGHT COLUMN - WITHOUT LASER CUT (NON COLLAPSIBLE)
FR3306 Motorsports Straight Column
FR3306KT Motorsports Straight Column Kit - Includes FR20142 Quick Release Hub
FR3308 Stainless Steel Nostalgia Straight Column
MOTORSPORTS STRAIGHT COLUMN - WITH LASER CUT (COLLAPSIBLE)
FR3307 Laser Cut Collapsible Motorsports Straight Column
FR3307KT Laser Cut Collapsible Motorsports Straight Column Kit Includes FR20142 Quick Release Hub
FR3310LCKT Satin Black Finish Laser Cut Collapsible Motorsports column with Quick Disconnect
54
