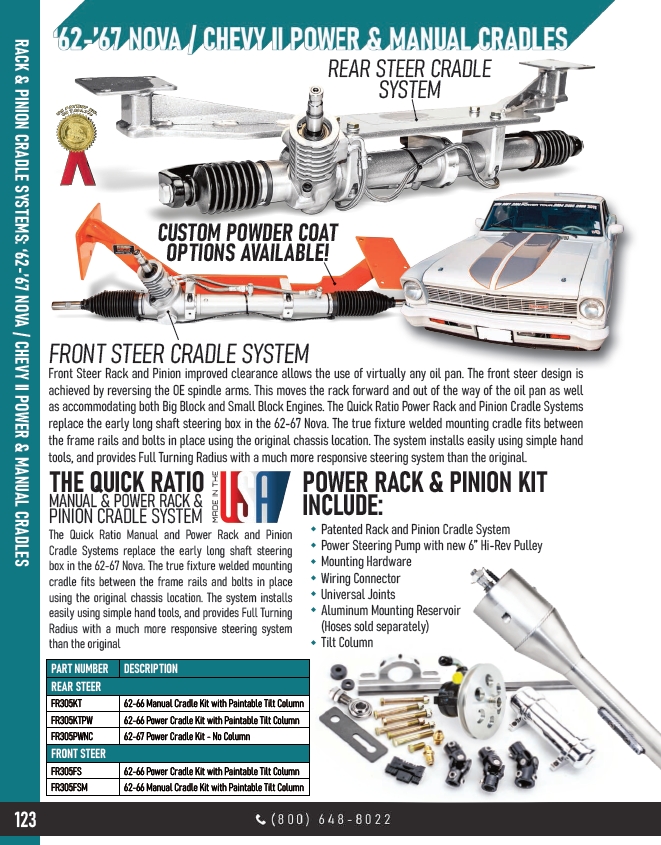

123 RACK & PINION CRADLE SYSTEMS: ‘62-’67 NOVA / CHEVY II POWER & MANUAL CRADLES
CUSTOM POWDER COAT
OPTIONS AVAILABLE!
FRONT STEER CRADLE SYSTEM
REAR STEER CRADLE
SYSTEM
Front Steer Rack and Pinion improved clearance allows the use of virtually any oil pan. The front steer design is
achieved by reversing the OE spindle arms. This moves the rack forward and out of the way of the oil pan as well
as accommodating both Big Block and Small Block Engines. The Quick Ratio Power Rack and Pinion Cradle Systems
replace the early long shaft steering box in the 62-67 Nova. The true fixture welded mounting cradle fits between
the frame rails and bolts in place using the original chassis location. The system installs easily using simple hand
tools, and provides Full Turning Radius with a much more responsive steering system than the original.
THE QUICK RATIO POWER RACK & PINION KIT
MANUAL & POWER RACK & PINION CRADLE SYSTEM
INCLUDE:
The Quick Ratio Manual and Power Rack and Pinion
Patented Rack and Pinion Cradle System
Cradle Systems replace the early long shaft steering
Power Steering Pump with new 6” Hi-Rev Pulley
box in the 62-67 Nova. The true fixture welded mounting
Mounting Hardware
cradle fits between the frame rails and bolts in place
Wiring Connector
using the original chassis location. The system installs
Universal Joints
easily using simple hand tools, and provides Full Turning
Aluminum Mounting Reservoir
Radius with a much more responsive steering system
(Hoses sold separately)
than the original
Tilt Column
PART NUMBER DESCRIPTION
REAR STEER
FR305KT 62-66 Manual Cradle Kit with Paintable Tilt Column
FR305KTPW 62-66 Power Cradle Kit with Paintable Tilt Column
FR305PWNC 62-67 Power Cradle Kit - No Column
FRONT STEER
FR305FS 62-66 Power Cradle Kit with Paintable Tilt Column
FR305FSM 62-66 Manual Cradle Kit with Paintable Tilt Column
