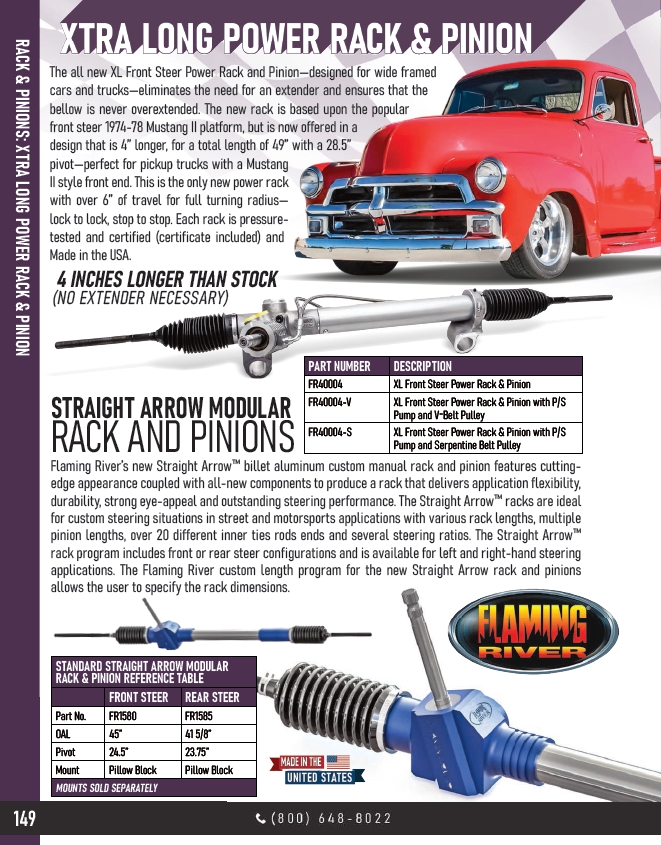

149 RACK & PINIONS: XTRA LONG POWER RACK & PINION
The all new XL Front Steer Power Rack and Pinion—designed for wide framed
cars and trucks—eliminates the need for an extender and ensures that the
bellow is never overextended. The new rack is based upon the popular
front steer 1974-78 Mustang II platform, but is now offered in a
design that is 4” longer, for a total length of 49” with a 28.5”
pivot—perfect for pickup trucks with a Mustang
II style front end. This is the only new power rack
with over 6” of travel for full turning radius—
lock to lock, stop to stop. Each rack is pressuretested
and certified (certificate included) and
Made in the USA.
PART NUMBER DESCRIPTION
FR40004 XL Front Steer Power Rack & Pinion
FR40004-V XL Front Steer Power Rack & Pinion with P/S
Pump and V-Belt Pulley
FR40004-S XL Front Steer Power Rack & Pinion with P/S
Pump and Serpentine Belt Pulley
4 INCHES LONGER THAN STOCK
(NO EXTENDER NECESSARY)
STRAIGHT ARROW MODULAR RACK AND PINIONS
Flaming River’s new Straight Arrow™ billet aluminum custom manual rack and pinion features cuttingedge
appearance coupled with all-new components to produce a rack that delivers application flexibility,
durability, strong eye-appeal and outstanding steering performance. The Straight Arrow™ racks are ideal
for custom steering situations in street and motorsports applications with various rack lengths, multiple
pinion lengths, over 20 different inner ties rods ends and several steering ratios. The Straight Arrow™
rack program includes front or rear steer configurations and is available for left and right-hand steering
applications. The Flaming River custom length program for the new Straight Arrow rack and pinions
allows the user to specify the rack dimensions.
STANDARD STRAIGHT ARROW MODULAR
RACK & PINION REFERENCE TABLE
FRONT STEER REAR STEER
Part No. FR1580 FR1585
OAL 45” 41 5/8”
Pivot 24.5” 23.75”
Mount Pillow Block Pillow Block
MOUNTS SOLD SEPARATELY
