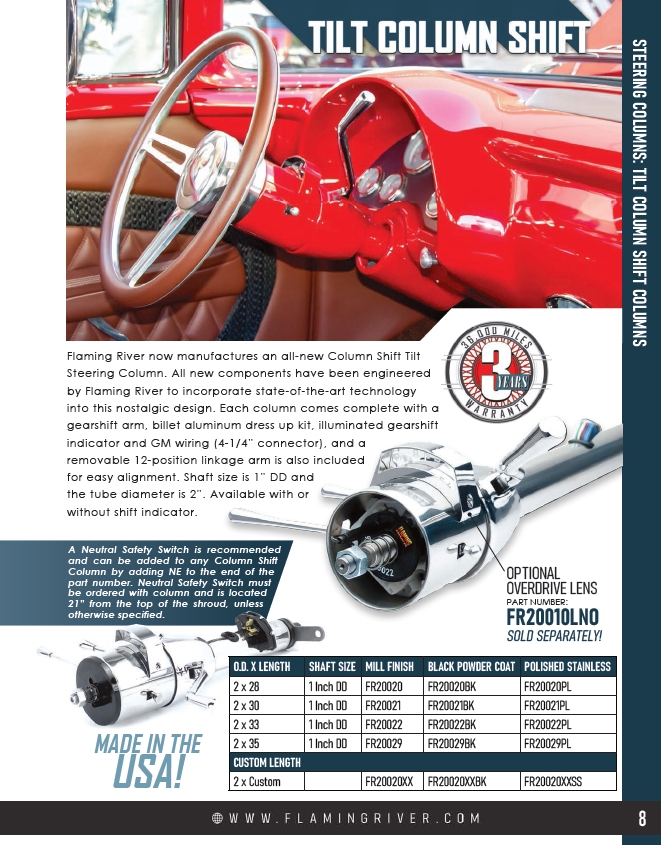

STEERING COLUMNS: TILT COLUMN SHIFT COLUMNS
Flaming River now manufactures an all-new Column Shift Tilt
Steering Column. All new components have been engineered
by Flaming River to incorporate state-of-the-art technology
into this nostalgic design. Each column comes complete with a
gearshift arm, billet aluminum dress up kit, illuminated gearshift
indicator and GM wiring (4-1/4” connector), and a
removable 12-position linkage arm is also included
for easy alignment. Shaft size is 1” DD and
the tube diameter is 2”. Available with or
without shift indicator.
A Neutral Safety Switch is recommended
and can be added to any Column Shift
Column by adding NE to the end of the
part number. Neutral Safety Switch must
be ordered with column and is located
21” from the top of the shroud, unless
otherwise specified.
O.D. X LENGTH SHAFT SIZE MILL FINISH BLACK POWDER COAT POLISHED STAINLESS
2 x 28 1 Inch DD FR20020 FR20020BK FR20020PL
2 x 30 1 Inch DD FR20021 FR20021BK FR20021PL
2 x 33 1 Inch DD FR20022 FR20022BK FR20022PL
2 x 35 1 Inch DD FR20029 FR20029BK FR20029PL
CUSTOM LENGTH
2 x Custom FR20020XX FR20020XXBK FR20020XXSS
MADE IN THE
USA!
OPTIONAL
OVERDRIVE LENS
PART NUMBER: FR20010LNO
SOLD SEPARATELY!
