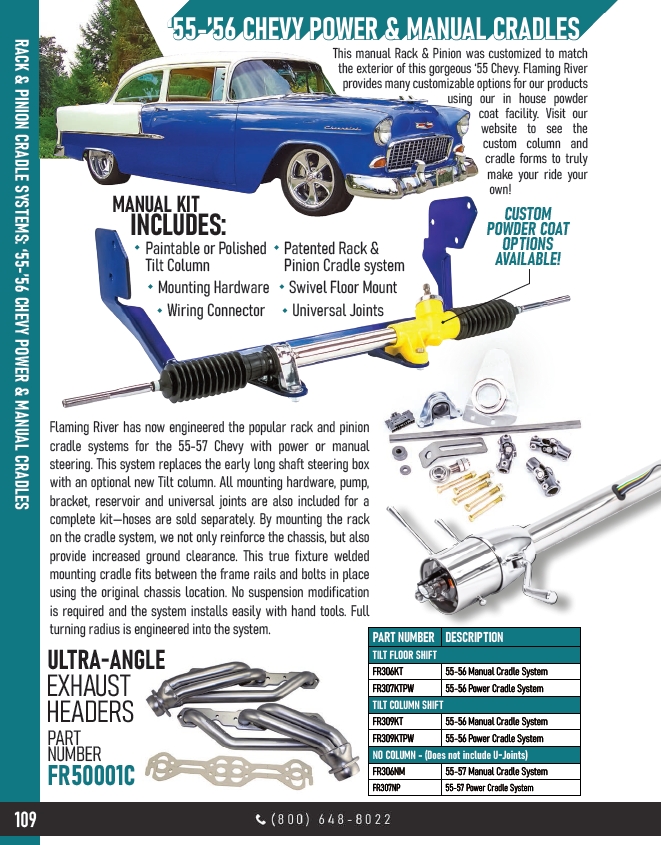

109 RACK & PINION CRADLE SYSTEMS: ‘55-’56 CHEVY POWER & MANUAL CRADLES
This manual Rack & Pinion was customized to match
the exterior of this gorgeous ‘55 Chevy. Flaming River
provides many customizable options for our products
coat facility. Visit our
website to see the
custom column and
cradle forms to truly
make your ride your
own! MANUAL KIT
INCLUDES:
Patented Rack &
Pinion Cradle system
Flaming River has now engineered the popular rack and pinion
cradle systems for the 55-57 Chevy with power or manual
steering. This system replaces the early long shaft steering box
with an optional new Tilt column. All mounting hardware, pump,
bracket, reservoir and universal joints are also included for a
complete kit—hoses are sold separately. By mounting the rack
on the cradle system, we not only reinforce the chassis, but also
provide increased ground clearance. This true fixture welded
mounting cradle fits between the frame rails and bolts in place
using the original chassis location. No suspension modification
is required and the system installs easily with hand tools. Full
turning radius is engineered into the system.
using our in house powder
CUSTOM
POWDER COAT
OPTIONS
AVAILABLE!
Paintable or Polished
Tilt Column
Mounting Hardware Swivel Floor Mount
Universal Joints
Wiring Connector
ULTRA-ANGLE
EXHAUST
HEADERS
PART
NUMBER
FR50001C
PART NUMBER DESCRIPTION
TILT FLOOR SHIFT
FR306KT 55-56 Manual Cradle System
FR307KTPW 55-56 Power Cradle System
TILT COLUMN SHIFT
FR309KT 55-56 Manual Cradle System
FR309KTPW 55-56 Power Cradle System
NO COLUMN - (Does not include U-Joints)
FR306NM 55-57 Manual Cradle System
FR307NP 55-57 Power Cradle System
