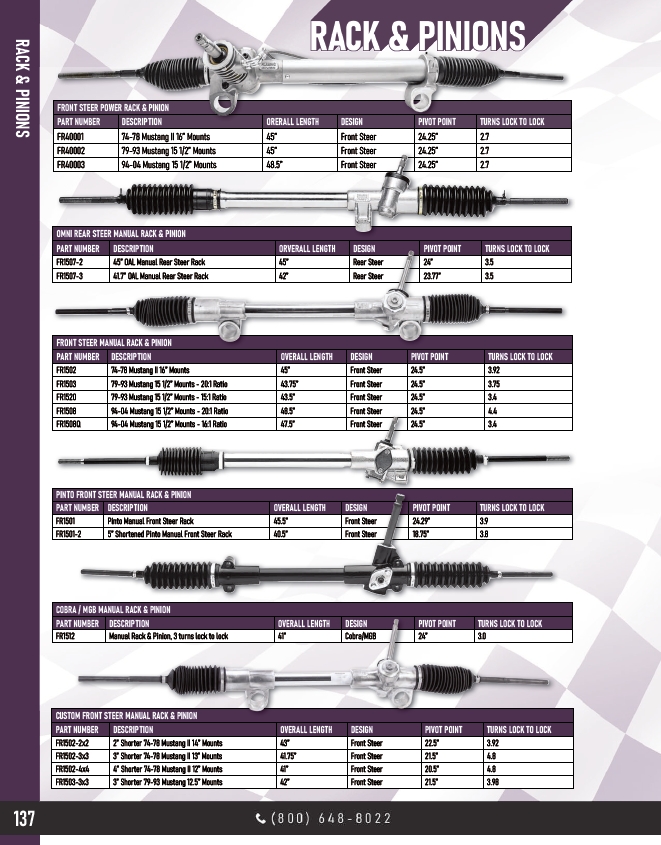

137 RACK & PINIONS
FRONT STEER POWER RACK & PINION
PART NUMBER DESCRIPTION ORERALL LENGTH DESIGN PIVOT POINT TURNS LOCK TO LOCK
FR40001 74-78 Mustang II 16” Mounts 45” Front Steer 24.25” 2.7
FR40002 79-93 Mustang 15 1/2” Mounts 45” Front Steer 24.25” 2.7
FR40003 94-04 Mustang 15 1/2” Mounts 48.5” Front Steer 24.25” 2.7
OMNI REAR STEER MANUAL RACK & PINION
PART NUMBER DESCRIPTION ORVERALL LENGTH DESIGN PIVOT POINT TURNS LOCK TO LOCK
FR1507-2 45” OAL Manual Rear Steer Rack 45” Rear Steer 24” 3.5
FR1507-3 41.7” OAL Manual Rear Steer Rack 42” Rear Steer 23.77” 3.5
FRONT STEER MANUAL RACK & PINION
PART NUMBER DESCRIPTION OVERALL LENGTH DESIGN PIVOT POINT TURNS LOCK TO LOCK
FR1502 74-78 Mustang II 16” Mounts 45” Front Steer 24.5” 3.92
FR1503 79-93 Mustang 15 1/2” Mounts - 20:1 Ratio 43.75” Front Steer 24.5” 3.75
FR1520 79-93 Mustang 15 1/2” Mounts - 15:1 Ratio 43.5” Front Steer 24.5” 3.4
FR1508 94-04 Mustang 15 1/2” Mounts - 20:1 Ratio 48.5” Front Steer 24.5” 4.4
FR1508Q 94-04 Mustang 15 1/2” Mounts - 16:1 Ratio 47.5” Front Steer 24.5” 3.4
PINTO FRONT STEER MANUAL RACK & PINION
PART NUMBER DESCRIPTION OVERALL LENGTH DESIGN PIVOT POINT TURNS LOCK TO LOCK
FR1501 Pinto Manual Front Steer Rack 45.5” Front Steer 24.29” 3.9
FR1501-2 5” Shortened Pinto Manual Front Steer Rack 40.5” Front Steer 18.75” 3.8
COBRA / MGB MANUAL RACK & PINION
PART NUMBER DESCRIPTION OVERALL LENGTH DESIGN PIVOT POINT TURNS LOCK TO LOCK
FR1512 Manual Rack & Pinion, 3 turns lock to lock 41” Cobra/MGB 24” 3.0
CUSTOM FRONT STEER MANUAL RACK & PINION
PART NUMBER DESCRIPTION OVERALL LENGTH DESIGN PIVOT POINT TURNS LOCK TO LOCK
FR1502-2x2 2” Shorter 74-78 Mustang II 14” Mounts 43” Front Steer 22.5” 3.92
FR1502-3x3 3” Shorter 74-78 Mustang II 13” Mounts 41.75” Front Steer 21.5” 4.8
FR1502-4x4 4” Shorter 74-78 Mustang II 12” Mounts 41” Front Steer 20.5” 4.8
FR1503-3x3 3” Shorter 79-93 Mustang 12.5” Mounts 42” Front Steer 21.5” 3.98
