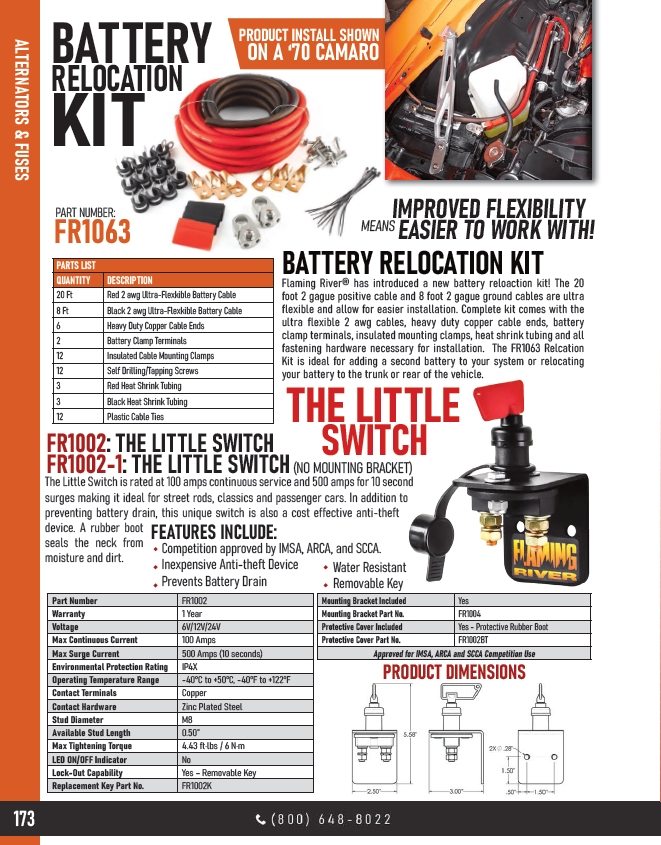

173 ALTERNATORS & FUSES
BATTERY RELOCATION KIT
FR1063
PRODUCT INSTALL SHOWN
ON A ‘70 CAMARO
IMPROVED FLEXIBILITY
ME A N S EASIER TO WORK WITH!
BATTERY RELOCATION KIT
PART NUMBER:
PARTS LIST
QUANTITY DESCRIPTION
20 Ft Red 2 awg Ultra-Flexkible Battery Cable
8 Ft Black 2 awg Ultra-Flexkible Battery Cable
6 Heavy Duty Copper Cable Ends
2 Battery Clamp Terminals
12 Insulated Cable Mounting Clamps
12 Self Drilling/Tapping Screws
3 Red Heat Shrink Tubing
3 Black Heat Shrink Tubing
12 Plastic Cable Ties
Flaming River® has introduced a new battery reloaction kit! The 20
foot 2 gague positive cable and 8 foot 2 gague ground cables are ultra
flexible and allow for easier installation. Complete kit comes with the
ultra flexible 2 awg cables, heavy duty copper cable ends, battery
clamp terminals, insulated mounting clamps, heat shrink tubing and all
fastening hardware necessary for installation. The FR1063 Relcation
Kit is ideal for adding a second battery to your system or relocating
your battery to the trunk or rear of the vehicle.
THE LITTLE
SWITCH
FR1002: THE LITTLE SWITCH
FR1002-1: THE LITTLE SWITCH
The Little Switch is rated at 100 amps continuous service and 500 amps for 10 second
surges making it ideal for street rods, classics and passenger cars. In addition to
preventing battery drain, this unique switch is also a cost effective anti-theft
device. A rubber boot
FEATURES INCLUDE:
seals the neck from
moisture and dirt.
(NO MOUNTING BRACKET)
Competition approved by IMSA, ARCA, and SCCA.
Inexpensive Anti-theft Device
Prevents Battery Drain
Water Resistant
Removable Key
Part Number FR1002
Warranty 1 Year
Voltage 6V/12V/24V
Max Continuous Current 100 Amps
Max Surge Current 500 Amps (10 seconds)
Environmental Protection Rating IP4X
Operating Temperature Range -40°C to +50°C, -40°F to +122°F
Contact Terminals Copper
Contact Hardware Zinc Plated Steel
Stud Diameter M8
Available Stud Length 0.50”
Max Tightening Torque 4.43 ft·lbs / 6 N·m
LED ON/OFF Indicator No
Lock-Out Capability Yes – Removable Key
Replacement Key Part No. FR1002K
Mounting Bracket Included Yes
Mounting Bracket Part No. FR1004
Protective Cover Included Yes - Protective Rubber Boot
Protective Cover Part No. FR1002BT
Approved for IMSA, ARCA and SCCA Competition Use
PRODUCT DIMENSIONS
