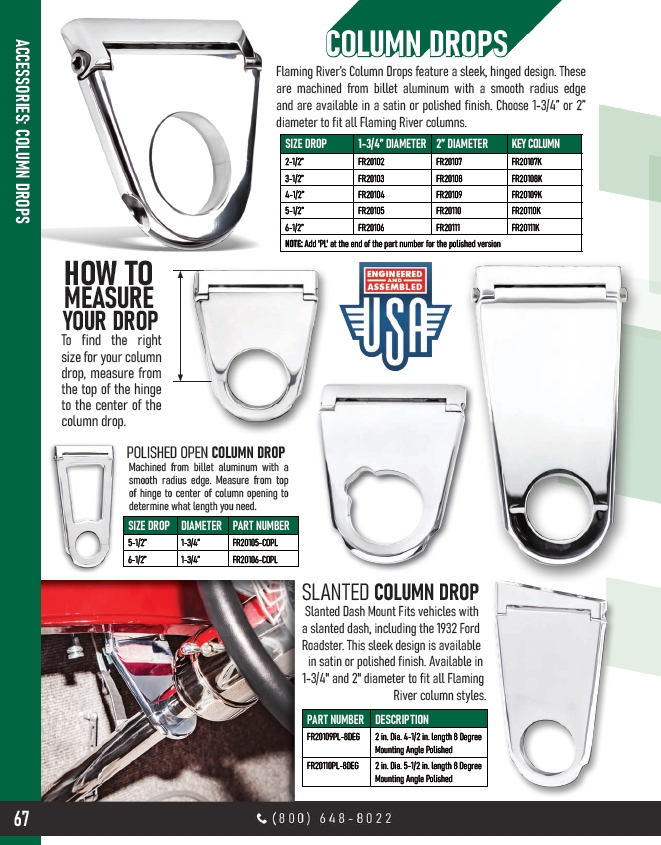

67 ACCESSORIES: COLUMN DROPS
Flaming River’s Column Drops feature a sleek, hinged design. These
are machined from billet aluminum with a smooth radius edge
and are available in a satin or polished finish. Choose 1-3/4” or 2”
diameter to fit all Flaming River columns.
SIZE DROP 1-3/4” DIAMETER 2” DIAMETER KEY COLUMN
2-1/2” FR20102 FR20107 FR20107K
3-1/2” FR20103 FR20108 FR20108K
4-1/2” FR20104 FR20109 FR20109K
5-1/2” FR20105 FR20110 FR20110K
6-1/2” FR20106 FR20111 FR20111K
NOTE: Add 'PL' at the end of the part number for the polished version
HOW TO
MEASURE
YOUR DROP
POLISHED OPEN COLUMN DROP
SLANTED COLUMN DROP
To find the right
size for your column
drop, measure from
the top of the hinge
to the center of the
column drop.
Machined from billet aluminum with a
smooth radius edge. Measure from top
of hinge to center of column opening to
determine what length you need.
SIZE DROP DIAMETER PART NUMBER
5-1/2” 1-3/4” FR20105-COPL
6-1/2” 1-3/4” FR20106-COPL
Slanted Dash Mount Fits vehicles with
a slanted dash, including the 1932 Ford
Roadster. This sleek design is available
in satin or polished finish. Available in
1-3/4" and 2" diameter to fit all Flaming
River column styles.
PART NUMBER DESCRIPTION
FR20109PL-8DEG 2 in. Dia. 4-1/2 in. length 8 Degree
Mounting Angle Polished
FR20110PL-8DEG 2 in. Dia. 5-1/2 in. length 8 Degree
Mounting Angle Polished
