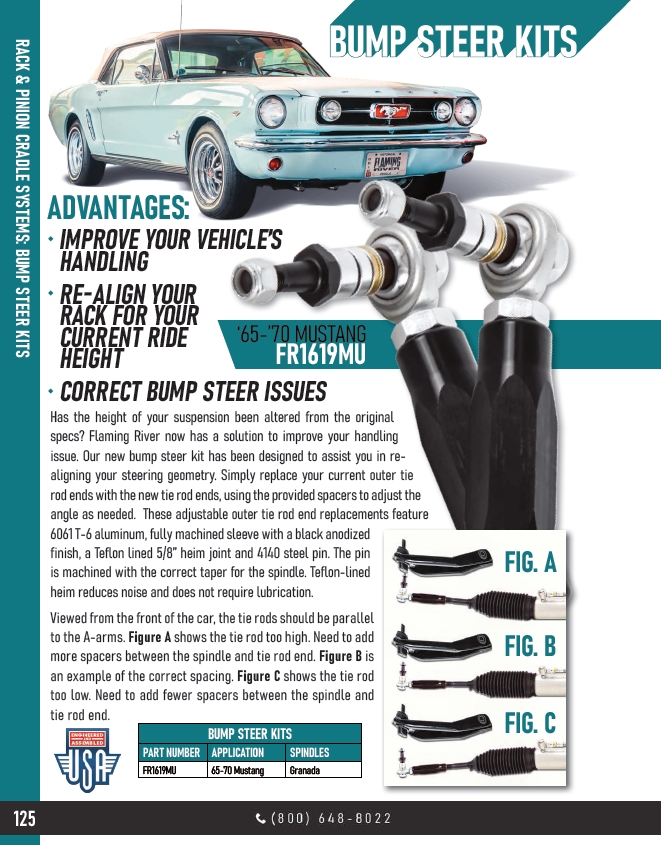

125 RACK & PINION CRADLE SYSTEMS: BUMP STEER KITS
ADVANTAGES:
IMPROVE YOUR VEHICLE’S
HANDLING
RE-ALIGN YOUR
RACK FOR YOUR
CURRENT RIDE
HEIGHT
‘65-’70 MUSTANG FR1619MU
CORRECT BUMP STEER ISSUES
Has the height of your suspension been altered from the original
specs? Flaming River now has a solution to improve your handling
issue. Our new bump steer kit has been designed to assist you in realigning
your steering geometry. Simply replace your current outer tie
rod ends with the new tie rod ends, using the provided spacers to adjust the
angle as needed. These adjustable outer tie rod end replacements feature
6061 T-6 aluminum, fully machined sleeve with a black anodized
finish, a Teflon lined 5/8” heim joint and 4140 steel pin. The pin
is machined with the correct taper for the spindle. Teflon-lined
heim reduces noise and does not require lubrication.
Viewed from the front of the car, the tie rods should be parallel
to the A-arms. Figure A shows the tie rod too high. Need to add
more spacers between the spindle and tie rod end. Figure B is
an example of the correct spacing. Figure C shows the tie rod
too low. Need to add fewer spacers between the spindle and
tie rod end.
FIG. A
FIG. B
FIG. C BUMP STEER KITS
PART NUMBER APPLICATION SPINDLES
FR1619MU 65-70 Mustang Granada
