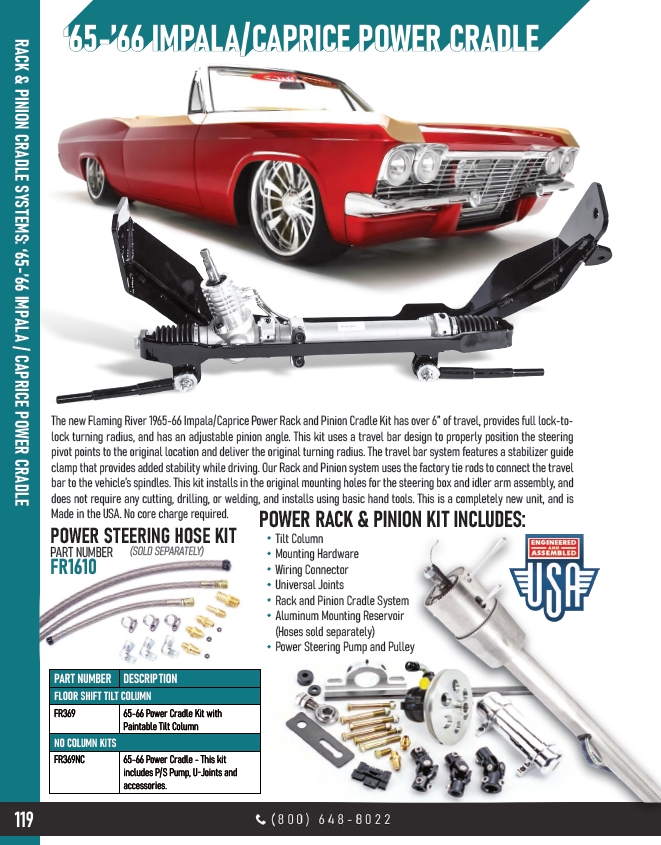

119 RACK & PINION CRADLE SYSTEMS: ‘65-’66 IMPALA / CAPRICE POWER CRADLE
The new Flaming River 1965-66 Impala/Caprice Power Rack and Pinion Cradle Kit has over 6” of travel, provides full lock-tolock
turning radius, and has an adjustable pinion angle. This kit uses a travel bar design to properly position the steering
pivot points to the original location and deliver the original turning radius. The travel bar system features a stabilizer guide
clamp that provides added stability while driving. Our Rack and Pinion system uses the factory tie rods to connect the travel
bar to the vehicle’s spindles. This kit installs in the original mounting holes for the steering box and idler arm assembly, and
does not require any cutting, drilling, or welding, and installs using basic hand tools. This is a completely new unit, and is
Made in the USA. No core charge required. POWER RACK & PINION KIT INCLUDES:
Tilt Column
Mounting Hardware
Wiring Connector
Universal Joints
Rack and Pinion Cradle System
Aluminum Mounting Reservoir
(Hoses sold separately)
Power Steering Pump and Pulley
POWER STEERING HOSE KIT
FR1610 PART NUMBER (SOLD SEPARATELY)
PART NUMBER DESCRIPTION
FLOOR SHIFT TILT COLUMN
FR369 65-66 Power Cradle Kit with
Paintable Tilt Column
NO COLUMN KITS
FR369NC 65-66 Power Cradle - This kit
includes P/S Pump, U-Joints and
accessories.
