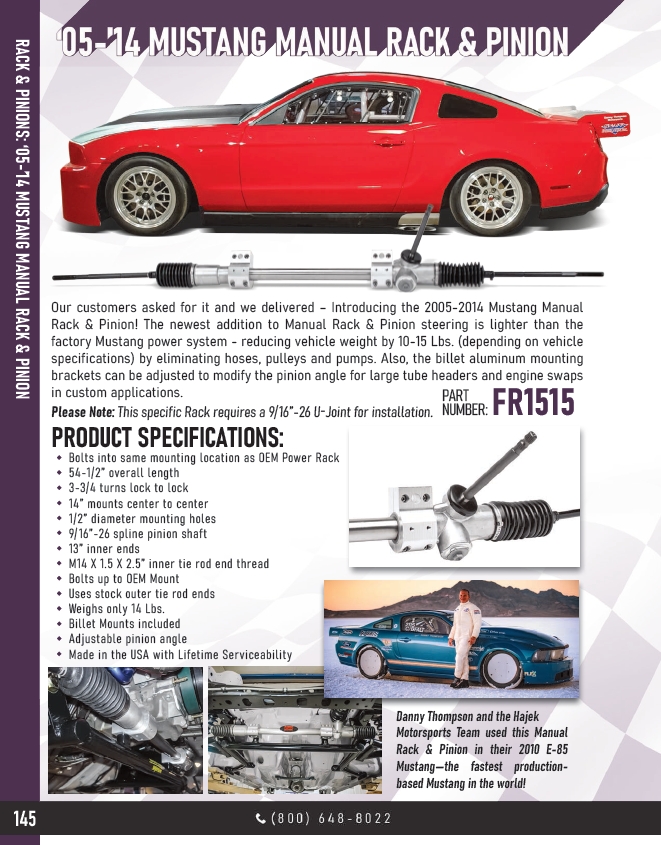

145 RACK & PINIONS: ‘05-’14 MUSTANG MANUAL RACK & PINION
Our customers asked for it and we delivered – Introducing the 2005-2014 Mustang Manual
Rack & Pinion! The newest addition to Manual Rack & Pinion steering is lighter than the
factory Mustang power system - reducing vehicle weight by 10-15 Lbs. (depending on vehicle
specifications) by eliminating hoses, pulleys and pumps. Also, the billet aluminum mounting
brackets can be adjusted to modify the pinion angle for large tube headers and engine swaps
in custom applications. PART
NUMBER: FR1515 Please Note: This specific Rack requires a 9/16”-26 U-Joint for installation.
PRODUCT SPECIFICATIONS:
Bolts into same mounting location as OEM Power Rack
54-1/2” overall length
3-3/4 turns lock to lock
14” mounts center to center
1/2” diameter mounting holes
9/16”-26 spline pinion shaft
13” inner ends
M14 X 1.5 X 2.5” inner tie rod end thread
Bolts up to OEM Mount
Uses stock outer tie rod ends
Weighs only 14 Lbs.
Billet Mounts included
Adjustable pinion angle
Made in the USA with Lifetime Serviceability
Danny Thompson and the Hajek
Motorsports Team used this Manual
Rack & Pinion in their 2010 E-85
Mustang—the fastest productionbased
Mustang in the world!
