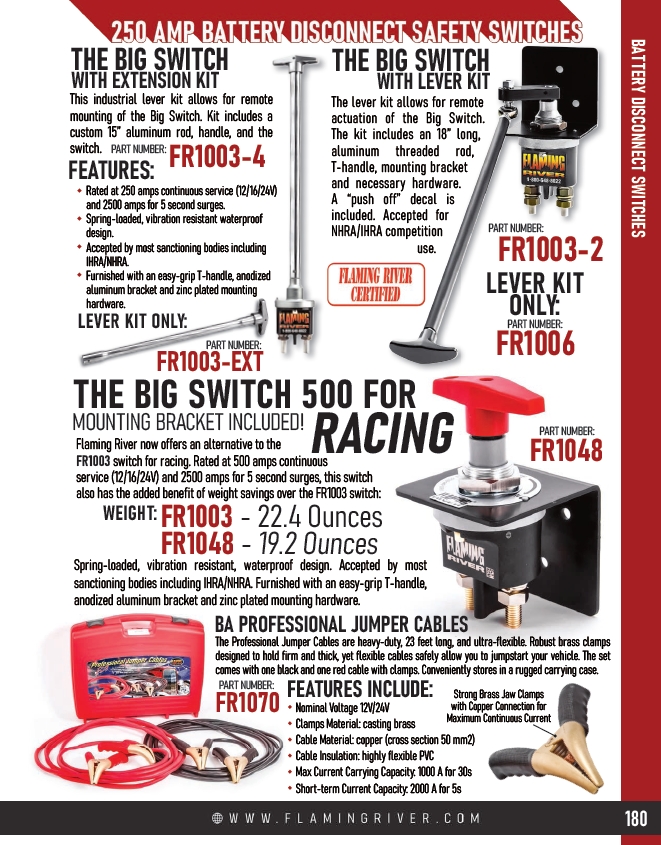

BATTERY DISCONNECT SWITCHES
180
THE BIG SWITCH
WITH EXTENSION KIT THE BIG SWITCH
WITH LEVER KIT
This industrial lever kit allows for remote
mounting of the Big Switch. Kit includes a
custom 15” aluminum rod, handle, and the
switch.
PART NUMBER:
FR1003-4
Rated at 250 amps continuous service (12/16/24V)
and 2500 amps for 5 second surges.
Spring-loaded, vibration resistant waterproof
design.
Accepted by most sanctioning bodies including
IHRA/NHRA.
Furnished with an easy-grip T-handle, anodized
aluminum bracket and zinc plated mounting
hardware.
LEVER KIT
ONLY: LEVER KIT ONLY:
PART NUMBER:
FR1003-EXT
THE BIG SWITCH 500 FOR RACING
MOUNTING BRACKET INCLUDED!
WEIGHT:
PART NUMBER:
PART NUMBER:
PART NUMBER:
FR1003
FR1048
- 22.4 Ounces
- 19.2 Ounces
BA PROFESSIONAL JUMPER CABLES
PART NUMBER:
FR1003-2
FR1006
FR1048
FR1070
FEATURES:
The lever kit allows for remote
actuation of the Big Switch.
The kit includes an 18” long,
aluminum threaded rod,
T-handle, mounting bracket
and necessary hardware.
A “push off” decal is
included. Accepted for
NHRA/IHRA competition
use.
Flaming River now offers an alternative to the
FR1003 switch for racing. Rated at 500 amps continuous
service (12/16/24V) and 2500 amps for 5 second surges, this switch
also has the added benefit of weight savings over the FR1003 switch:
Spring-loaded, vibration resistant, waterproof design. Accepted by most
sanctioning bodies including IHRA/NHRA. Furnished with an easy-grip T-handle,
anodized aluminum bracket and zinc plated mounting hardware.
The Professional Jumper Cables are heavy-duty, 23 feet long, and ultra-flexible. Robust brass clamps
designed to hold firm and thick, yet flexible cables safely allow you to jumpstart your vehicle. The set
comes with one black and one red cable with clamps. Conveniently stores in a rugged carrying case.
FEATURES INCLUDE:
Nominal Voltage 12V/24V
Clamps Material: casting brass
Cable Material: copper (cross section 50 mm2)
Cable Insulation: highly flexible PVC
Max Current Carrying Capacity: 1000 A for 30s
Short-term Current Capacity: 2000 A for 5s
Strong Brass Jaw Clamps
with Copper Connection for
Maximum Continuous Current
/www.flamingriver.com
