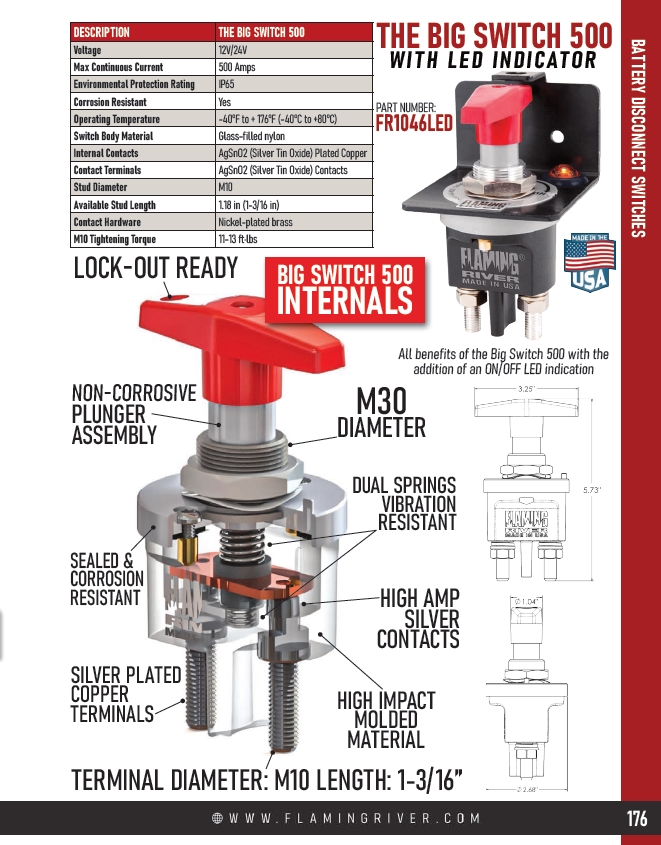

BATTERY DISCONNECT SWITCHES
176
THE BIG SWITCH 500
WI TH LED INDICATOR
PART NUMBER: FR1046LED
BIG SWITCH 500 INTERNALS
All benefits of the Big Switch 500 with the
addition of an ON/OFF LED indication
DESCRIPTION THE BIG SWITCH 500
Voltage 12V/24V
Max Continuous Current 500 Amps
Environmental Protection Rating IP65
Corrosion Resistant Yes
Operating Temperature -40°F to + 176°F (-40°C to +80°C)
Switch Body Material Glass-filled nylon
Internal Contacts AgSnO2 (Silver Tin Oxide) Plated Copper
Contact Terminals AgSnO2 (Silver Tin Oxide) Contacts
Stud Diameter M10
Available Stud Length 1.18 in (1-3/16 in)
Contact Hardware Nickel-plated brass
M10 Tightening Torque 11-13 ft·lbs
LOCK-OUT READY
M30
DIAMETER
DUAL SPRINGS
VIBRATION
RESISTANT
HIGH AMP
SILVER
CONTACTS
HIGH IMPACT
MOLDED
MATERIAL
NON-CORROSIVE
PLUNGER
ASSEMBLY
SEALED &
CORROSION
RESISTANT
SILVER PLATED
COPPER
TERMINALS
TERMINAL DIAMETER: M10 LENGTH: 1-3/16”
