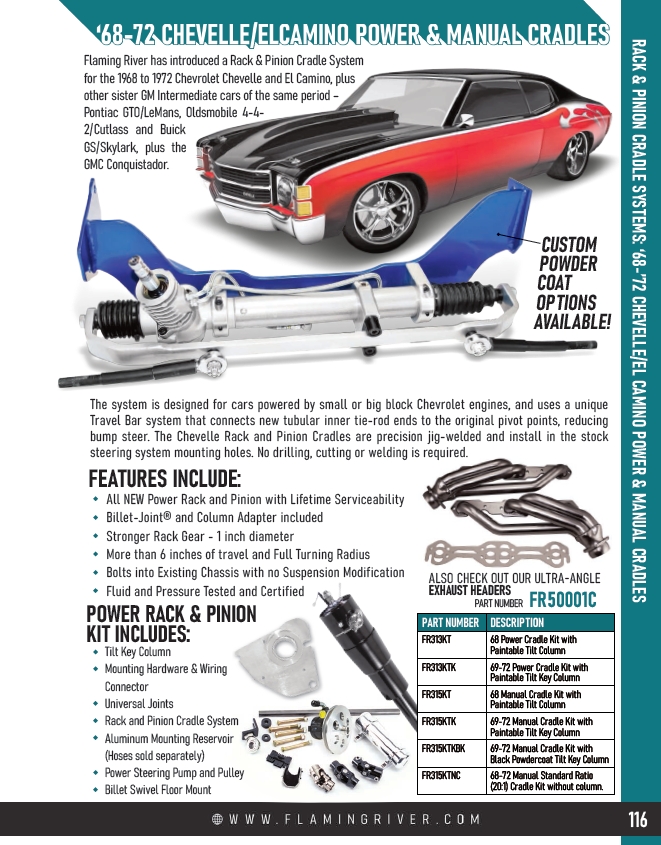

RACK & PINION CRADLE SYSTEMS: ‘68-’72 CHEVELLE/EL CAMINO POWER & MANUAL CRADLES
116
Flaming River has introduced a Rack & Pinion Cradle System
for the 1968 to 1972 Chevrolet Chevelle and El Camino, plus
other sister GM Intermediate cars of the same period –
Pontiac GTO/LeMans, Oldsmobile 4-4-
2/Cutlass and Buick
GS/Skylark, plus the
GMC Conquistador.
FEATURES INCLUDE:
POWER RACK & PINION
KIT INCLUDES:
CUSTOM
POWDER
COAT
OPTIONS
AVAILABLE!
The system is designed for cars powered by small or big block Chevrolet engines, and uses a unique
Travel Bar system that connects new tubular inner tie-rod ends to the original pivot points, reducing
bump steer. The Chevelle Rack and Pinion Cradles are precision jig-welded and install in the stock
steering system mounting holes. No drilling, cutting or welding is required.
All NEW Power Rack and Pinion with Lifetime Serviceability
Billet-Joint® and Column Adapter included
Stronger Rack Gear - 1 inch diameter
More than 6 inches of travel and Full Turning Radius
Bolts into Existing Chassis with no Suspension Modification
Fluid and Pressure Tested and Certified
Tilt Key Column
Mounting Hardware & Wiring
Connector
Universal Joints
Rack and Pinion Cradle System
Aluminum Mounting Reservoir
(Hoses sold separately)
Power Steering Pump and Pulley
Billet Swivel Floor Mount
ALSO CHECK OUT OUR ULTRA-ANGLE
EXHAUST HEADERS
PART NUMBER FR50001C
PART NUMBER DESCRIPTION
FR313KT 68 Power Cradle Kit with
Paintable Tilt Column
FR313KTK 69-72 Power Cradle Kit with
Paintable Tilt Key Column
FR315KT 68 Manual Cradle Kit with
Paintable Tilt Column
FR315KTK 69-72 Manual Cradle Kit with
Paintable Tilt Key Column
FR315KTKBK 69-72 Manual Cradle Kit with
Black Powdercoat Tilt Key Column
FR315KTNC 68-72 Manual Standard Ratio
(20:1) Cradle Kit without column.
/www.flamingriver.com
