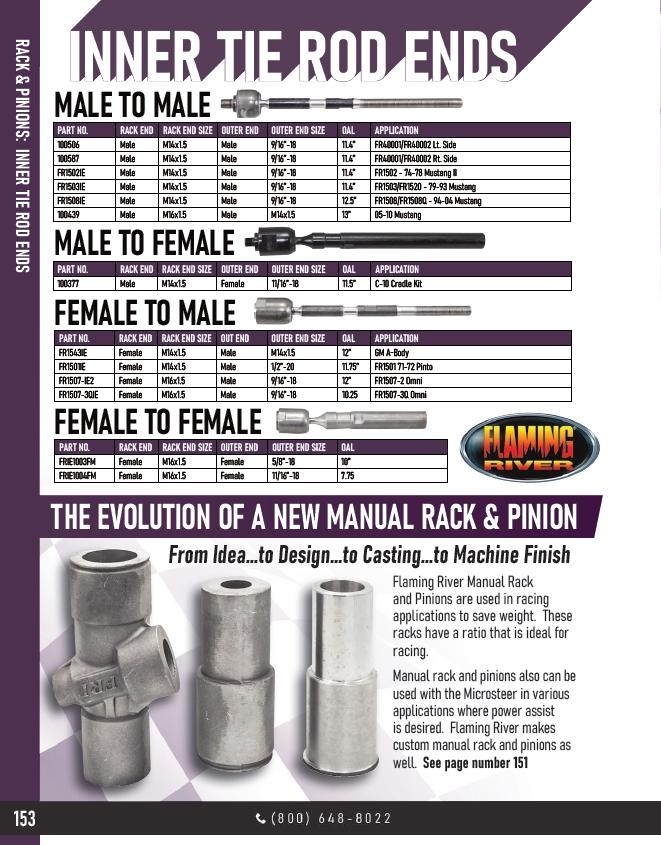

153 RACK & PINIONS: INNER TIE ROD ENDS
MALE TO MALE
PART NO. RACK END RACK END SIZE OUTER END OUTER END SIZE OAL APPLICATION
100506 Male M14x1.5 Male 9/16”-18 11.4” FR40001/FR40002 Lt. Side
100587 Male M14x1.5 Male 9/16”-18 11.4” FR40001/FR40002 Rt. Side
FR1502IE Male M14x1.5 Male 9/16”-18 11.4” FR1502 - 74-78 Mustang II
FR1503IE Male M14x1.5 Male 9/16”-18 11.4” FR1503/FR1520 - 79-93 Mustang
FR1508IE Male M14x1.5 Male 9/16”-18 12.5” FR1508/FR1508Q - 94-04 Mustang
100439 Male M16x1.5 Male M14x1.5 13” 05-10 Mustang
MALE TO FEMALE
PART NO. RACK END RACK END SIZE OUTER END OUTER END SIZE OAL APPLICATION
100377 Male M14x1.5 Female 11/16”-18 11.5” C-10 Cradle Kit
FEMALE TO MALE
PART NO. RACK END RACK END SIZE OUT END OUTER END SIZE OAL APPLICATION
FR1543IE Female M14x1.5 Male M14x1.5 12” GM A-Body
FR1501IE Female M14x1.5 Male 1/2”-20 11.75” FR1501 71-72 Pinto
FR1507-IE2 Female M16x1.5 Male 9/16”-18 12” FR1507-2 Omni
FR1507-3QIE Female M16x1.5 Male 9/16”-18 10.25 FR1507-3Q Omni
FEMALE TO FEMALE
PART NO. RACK END RACK END SIZE OUTER END OUTER END SIZE OAL
FRIE1003FM Female M16x1.5 Female 5/8”-18 10”
FRIE1004FM Female M16x1.5 Female 11/16”-18 7.75
THE EVOLUTION OF A NEW MANUAL RACK & PINION
From Idea...to Design...to Casting...to Machine Finish
Flaming River Manual Rack
and Pinions are used in racing
applications to save weight. These
racks have a ratio that is ideal for
racing.
Manual rack and pinions also can be
used with the Microsteer in various
applications where power assist
is desired. Flaming River makes
custom manual rack and pinions as
well. See page number 151
